EOS - SWIR - Family

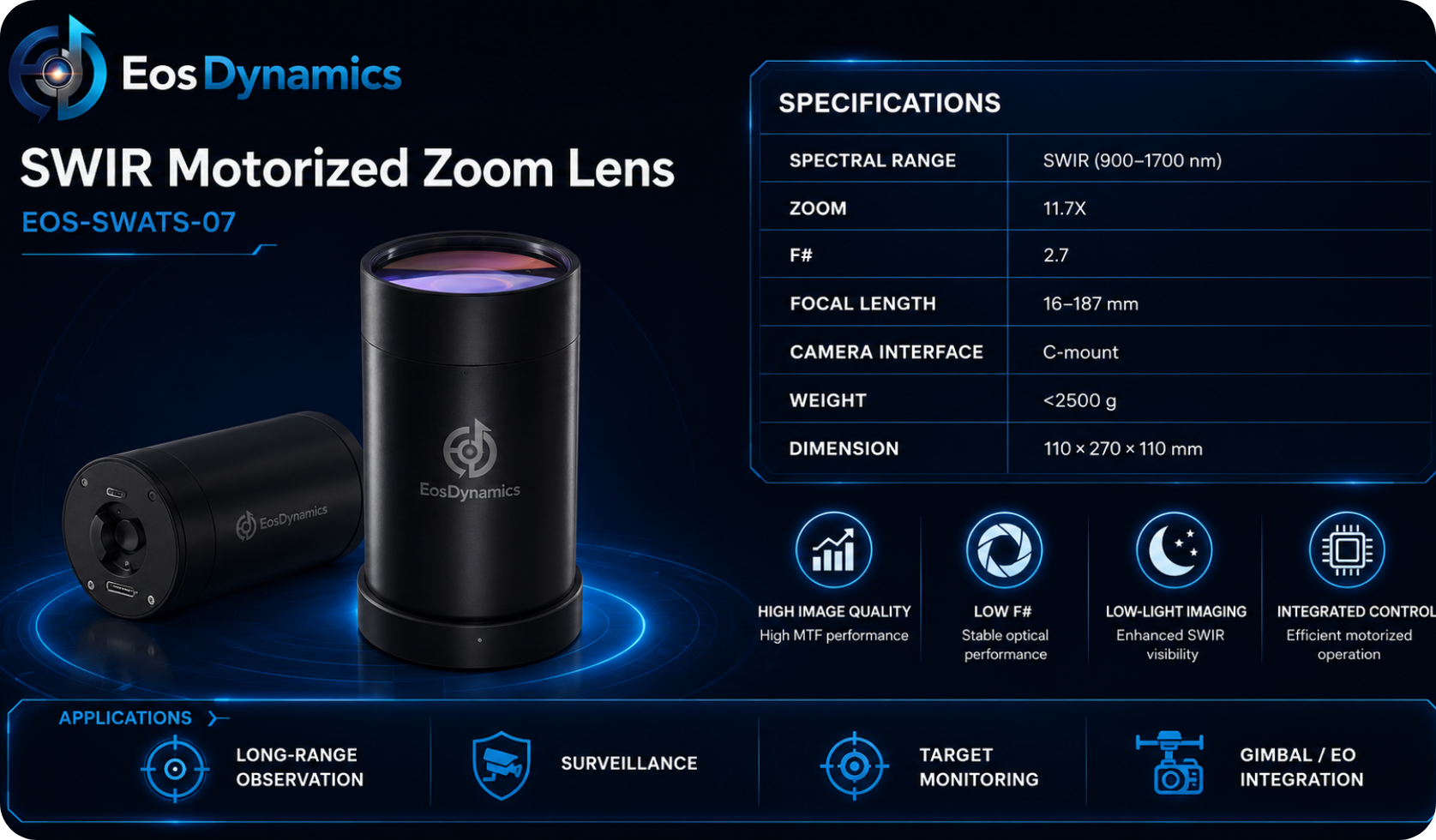

EOS-SWATS-07
SWIR Motorized Zoom Lens
The EOS-SWATS-07 is a high-performance SWIR motorized zoom lens designed for long-range observation, surveillance, target monitoring and electro-optical system integration. Operating within the 900–1700 nm SWIR spectral range, the lens provides enhanced visibility under low-light, haze, smoke and challenging atmospheric conditions where conventional visible imaging may be limited.
With its 16–187 mm focal length range and 11.7X motorized optical zoom capability, EOS-SWATS-07 enables smooth transition between wide-area observation and detailed target inspection. The low F# 2.7 optical design supports efficient light collection and stable imaging performance, making the lens suitable for demanding SWIR camera systems and precision imaging applications.
Designed with a C-mount camera interface and integrated motorized control architecture, the EOS-SWATS-07 can be efficiently integrated into compact payloads, stabilized gimbals, surveillance platforms and advanced EO/IR imaging systems. Its robust optical-mechanical structure and compact cylindrical form factor make it a reliable solution for professional SWIR imaging applications.
Key Features
- SWIR spectral range: 900–1700 nm
- 16–187 mm motorized zoom focal length
- 11.7X optical zoom capability
- Low F# 2.7 optical design
- High MTF performance for sharp image quality
- C-mount camera interface
- Integrated electronic control unit for motorized operation
- Compact and robust optical-mechanical design
- Optimized for low-light and long-range SWIR imaging
Applications
EOS-SWATS-07 is suitable for long-range observation, border surveillance, coastal monitoring, target monitoring, low-light imaging, industrial inspection, laser spot observation, stabilized gimbal payloads and advanced electro-optical system integration.
| Spectral Range | SWIR (900–1700 nm) |
|---|---|
| Zoom | 11.7X |
| F# | 2.7 |
| Focal Length | 16–187 mm |
| Camera Interface | C-mount |
| Weight | <2500 g |
| Dimension | 110 × 270 × 110 mm |
EOS-SWIR-CM-X30
SWIR Motorized Zoom Lens - 450mm
The EOS-SWIR-CM-X30 is a long-range SWIR motorized zoom lens developed for demanding observation, surveillance and electro-optical imaging applications. Operating within the 900–1700 nm SWIR spectral range, the lens provides enhanced imaging capability in low-light conditions, atmospheric haze and challenging visibility environments.
With a 50–450 mm focal length range and 9X optical zoom capability, EOS-SWIR-CM-X30 enables operators to perform both wide-area surveillance and detailed long-range target inspection from a single optical platform. Its F# 4.0–5.0 optical design is optimized for stable image quality, long focal length performance and reliable SWIR camera integration.
The robust rectangular housing, C-mount camera interface and integrated motorized control structure make the EOS-SWIR-CM-X30 suitable for professional EO payloads, stabilized gimbals, border surveillance systems, coastal monitoring platforms and long-range target monitoring applications. Its high MTF performance and precise optical-mechanical architecture support sharp imaging across the zoom range.
Key Features
- SWIR spectral range: 900–1700 nm
- 50–450 mm motorized zoom focal length
- 9X optical zoom capability
- F# 4.0–5.0 optical design
- High MTF performance for sharp image quality
- C-mount camera interface
- Integrated motorized control for zoom and focus operation
- Robust rectangular optical-mechanical housing
- Optimized for long-range SWIR observation and surveillance
- Suitable for EO/IR payload and gimbal integration
Applications
EOS-SWIR-CM-X30 is designed for long-range observation, border surveillance, coastal security, target monitoring, low-light imaging, laser spot observation, stabilized gimbal systems, EO/IR payloads and advanced electro-optical system integration.
| Spectral Range | SWIR (900–1700 nm) |
|---|---|
| Zoom | 9X |
| F# | 4.0–5.0 |
| Focal Length | 50–450 mm |
| Camera Interface | C-mount |
| Weight | <4000 g |
| Dimension | 160 × 400 × 160 mm |
