EOS - LWIR - Family

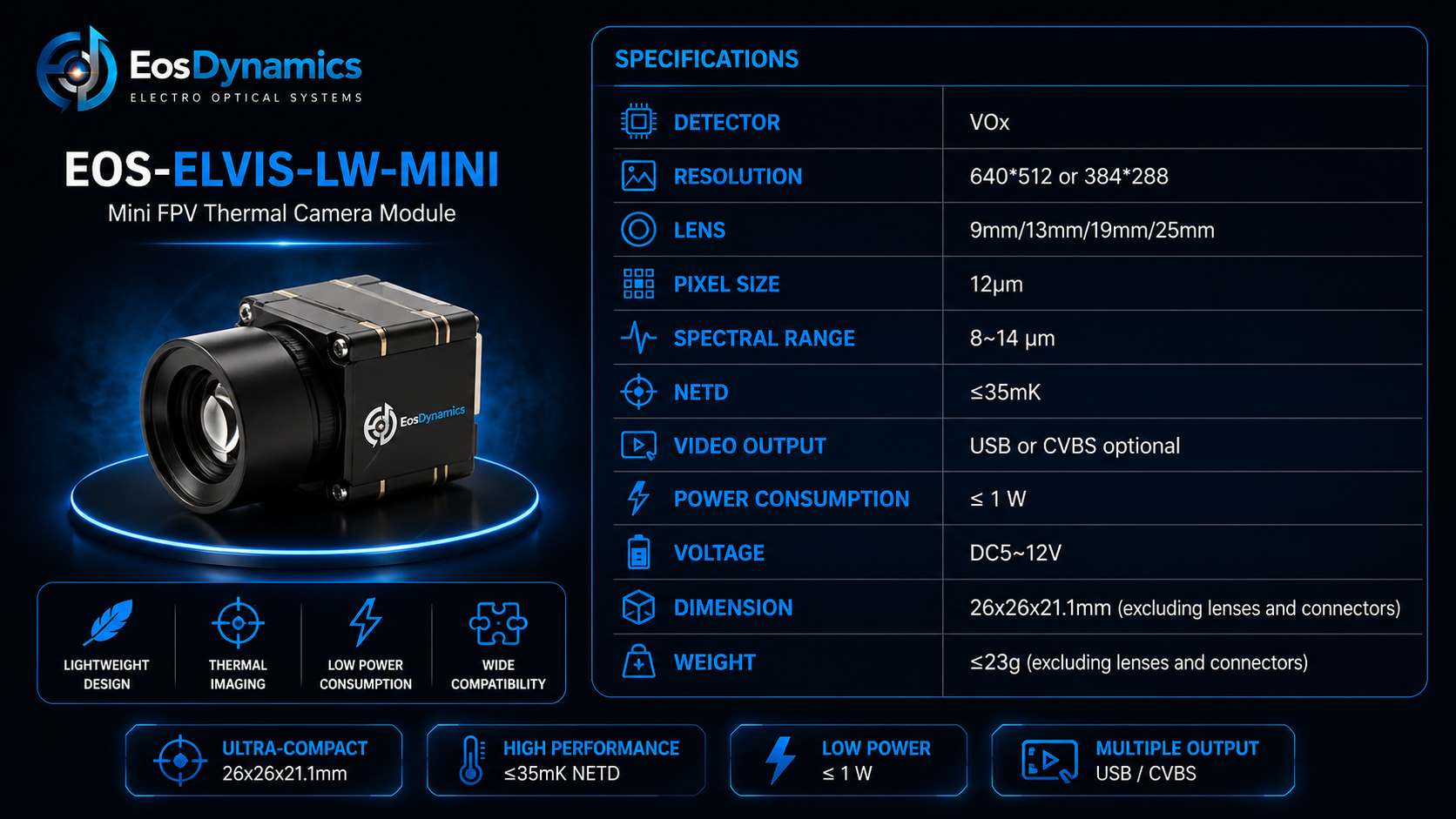

EOS-ELVIS-LW-MINI
Mini FPV Thermal Camera Module
EOS-ELVIS-LW-MINI is an ultra-compact LWIR thermal camera module designed for FPV platforms, UAV payloads, robotic systems and embedded electro-optical applications. With its VOx detector, low power architecture and multiple lens options, it delivers reliable thermal imaging performance in a lightweight and integration-friendly form factor.
- Ultra-compact 26 × 26 × 21.1 mm thermal core
- VOx detector with 640 × 512 or 384 × 288 resolution options
- High thermal sensitivity with ≤35 mK NETD
- Multiple lens options: 9 mm, 13 mm, 19 mm and 25 mm
- Low power consumption: ≤1 W
- USB or optional CVBS video output

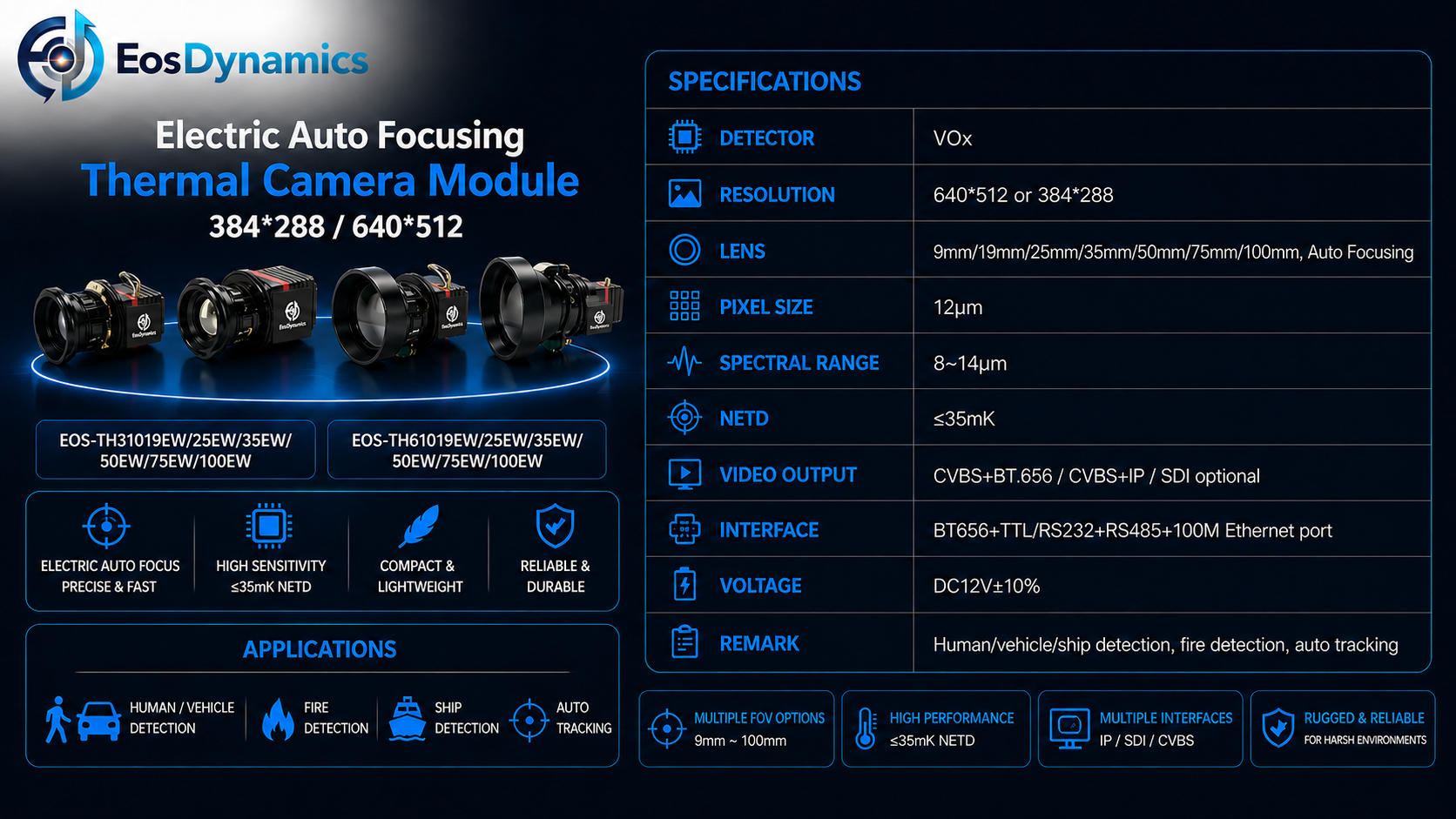

Electric Auto Focusing Thermal Camera Module
EOS Electric Auto Focusing Thermal Camera Modules are designed for advanced LWIR imaging applications requiring reliable detection, fast focusing and stable image performance. With VOx detector technology, 12 μm pixel pitch and high thermal sensitivity of ≤35 mK NETD, the series delivers clear thermal imaging for demanding observation environments.
The product family offers multiple lens options from 9 mm to 100 mm, allowing flexible field-of-view selection for short, medium and long-range applications. Electric auto focusing capability enables precise and fast image adjustment, especially in dynamic scenarios where target distance may change rapidly.
With CVBS, BT.656, IP and optional SDI video outputs, together with TTL, RS232, RS485 and Ethernet interface support, the modules can be easily integrated into electro-optical payloads, surveillance systems, maritime platforms, border security solutions and intelligent tracking architectures.
- VOx LWIR detector with 640 × 512 or 384 × 288 resolution options
- Electric auto focusing lens options from 9 mm to 100 mm
- High thermal sensitivity with ≤35 mK NETD
- Multiple video outputs including CVBS, IP and optional SDI
- Suitable for human, vehicle, ship, fire detection and auto tracking
- Compact and rugged structure for demanding field environments

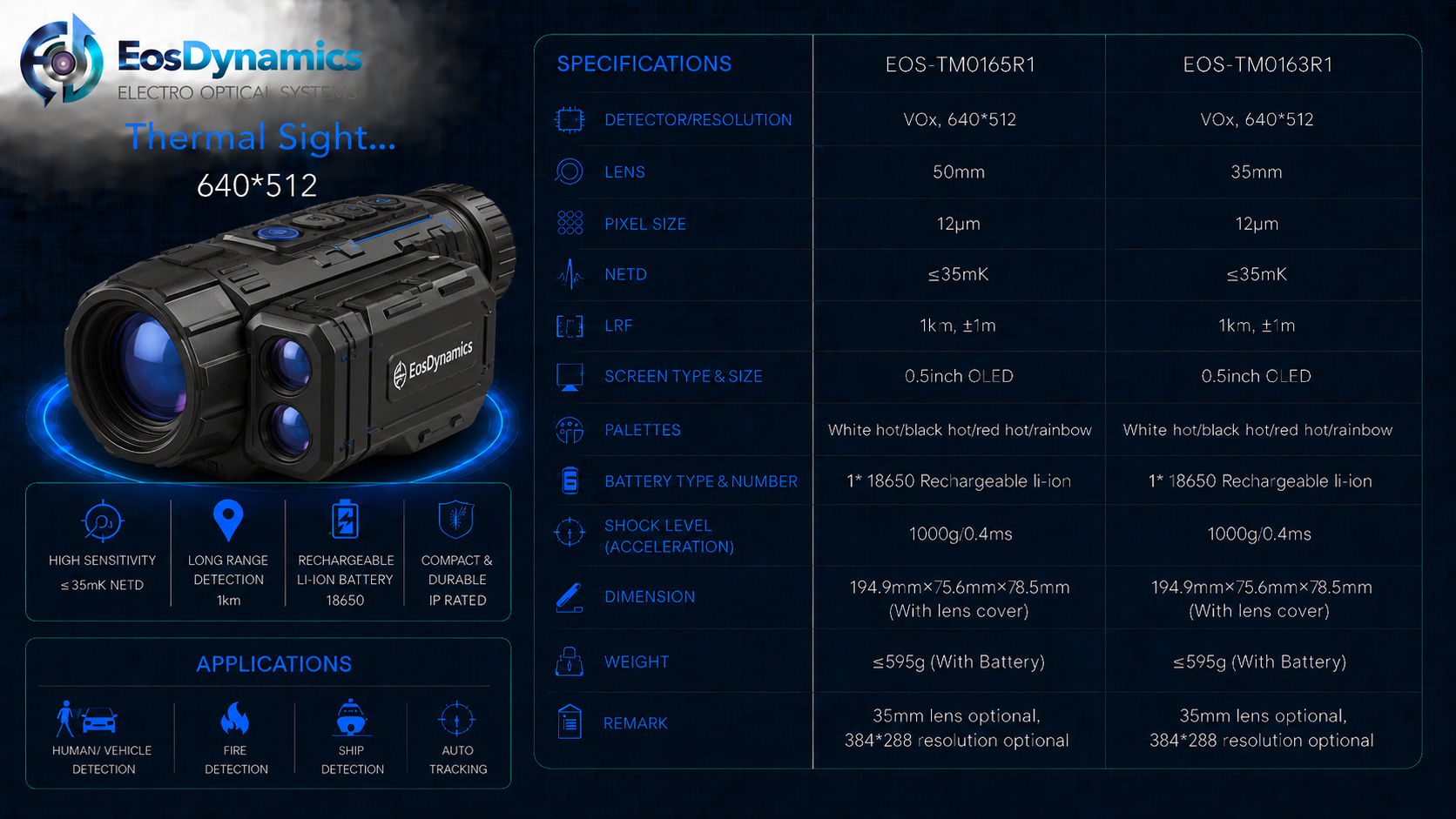

EOS-TM-R1 Thermal Sight Series
LWIR Thermal Sight with Integrated Laser Rangefinder
EOS-TM-R1 Thermal Sight Series is designed for advanced thermal observation, long-range detection and field-oriented electro-optical applications. Built with a VOx LWIR detector and 640 × 512 resolution, the series delivers clear thermal imaging performance with high sensitivity, stable image quality and reliable target visibility in low-light, night-time and harsh environmental conditions.
The series is available with 35 mm and 50 mm lens configurations, offering flexible field-of-view options for different operational ranges. With ≤35 mK NETD, multiple image palettes, integrated 1 km laser rangefinder and 0.5 inch OLED display, EOS-TM-R1 provides a compact and capable solution for human, vehicle, ship, fire detection and auto-tracking applications.
Powered by a rechargeable 18650 Li-ion battery and designed with a compact, durable housing, the module is suitable for portable observation systems, surveillance platforms and mission-ready thermal imaging integrations.
- VOx LWIR detector with 640 × 512 resolution
- 35 mm and 50 mm lens configuration options
- High thermal sensitivity with ≤35 mK NETD
- Integrated 1 km laser rangefinder with ±1 m accuracy
- 0.5 inch OLED display with multiple image palettes
- Rechargeable 18650 Li-ion battery
- Compact, durable and field-ready design

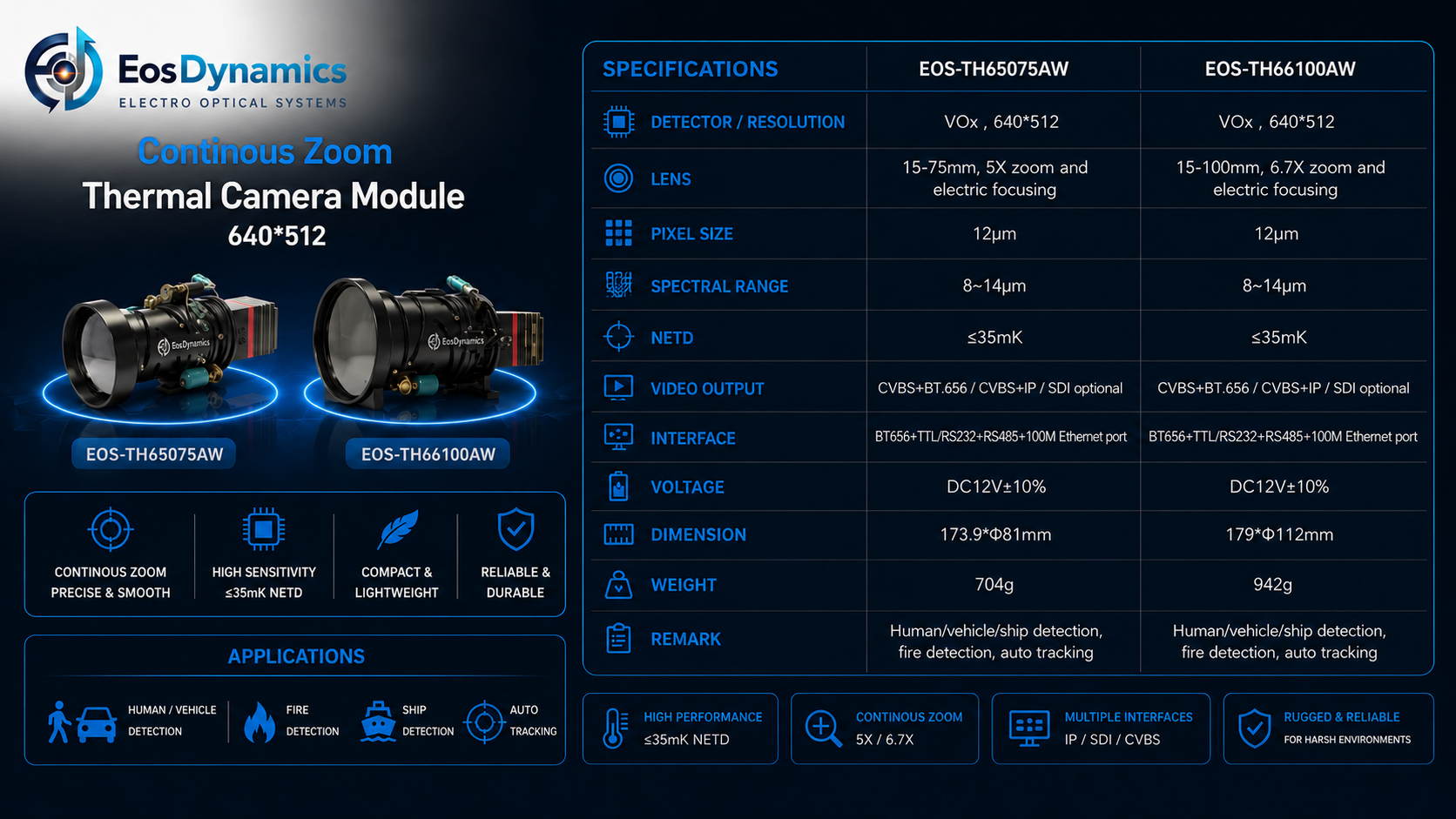

Continuous Zoom Thermal Camera Modules
EOS-TH65075AW
The EOS-TH65075AW is a compact continuous zoom thermal camera module designed for high-performance LWIR imaging applications. Featuring a 640×512 VOx detector, 12 µm pixel pitch and ≤35 mK NETD sensitivity, it delivers clear thermal imagery even under low-contrast environmental conditions.
Equipped with a 15–75 mm motorized continuous zoom lens, the module provides smooth 5X optical zoom and electric focusing capability for flexible target observation, surveillance and tracking tasks. Its lightweight 704 g structure makes it highly suitable for integration into stabilized payloads, surveillance systems, electro-optical platforms and compact thermal imaging assemblies.
Key Features
- 640×512 VOx thermal detector
- 12 µm pixel pitch
- 8–14 µm LWIR spectral range
- 15–75 mm continuous zoom lens
- 5X smooth optical zoom capability
- ≤35 mK high thermal sensitivity
- Electric focusing for precise image adjustment
- Compact and lightweight body design
- CVBS, BT.656, IP and optional SDI video output support
- Suitable for human, vehicle, ship and fire detection applications
Applications
EOS-TH65075AW is ideal for border surveillance, perimeter security, thermal observation systems, UAV payloads, maritime monitoring, fire detection systems and intelligent auto-tracking platforms.
EOS-TH66100AW
The EOS-TH66100AW is a high-performance continuous zoom thermal camera module developed for demanding long-range observation and target detection applications. Built around a 640×512 VOx detector with 12 µm pixel pitch, the module provides reliable LWIR imaging performance across the 8–14 µm spectral range.
With its 15–100 mm motorized continuous zoom lens, EOS-TH66100AW offers 6.7X optical zoom performance, enabling operators to switch smoothly between wide-area observation and narrow-field target inspection. Its ≤35 mK NETD sensitivity supports enhanced thermal contrast, helping detect and track human, vehicle, ship and fire signatures with improved clarity.
Designed for professional electro-optical systems, the module supports multiple video and control interfaces including CVBS, BT.656, IP, RS232, RS485 and optional SDI output. Its rugged structure and extended focal length make it suitable for stabilized gimbals, border surveillance systems, maritime platforms and advanced security applications.
Key Features
- 640×512 VOx thermal detector
- 12 µm pixel pitch
- 8–14 µm LWIR spectral range
- 15–100 mm continuous zoom lens
- 6.7X smooth optical zoom capability
- ≤35 mK high thermal sensitivity
- Electric focusing for accurate image control
- Multiple video output options: CVBS, BT.656, IP and optional SDI
- RS232, RS485 and Ethernet interface support
- Optimized for long-range surveillance and target tracking applications
Applications
EOS-TH66100AW is designed for long-range thermal surveillance, coastal and maritime monitoring, vehicle detection, border security, fire detection, perimeter protection and electro-optical tracking systems.

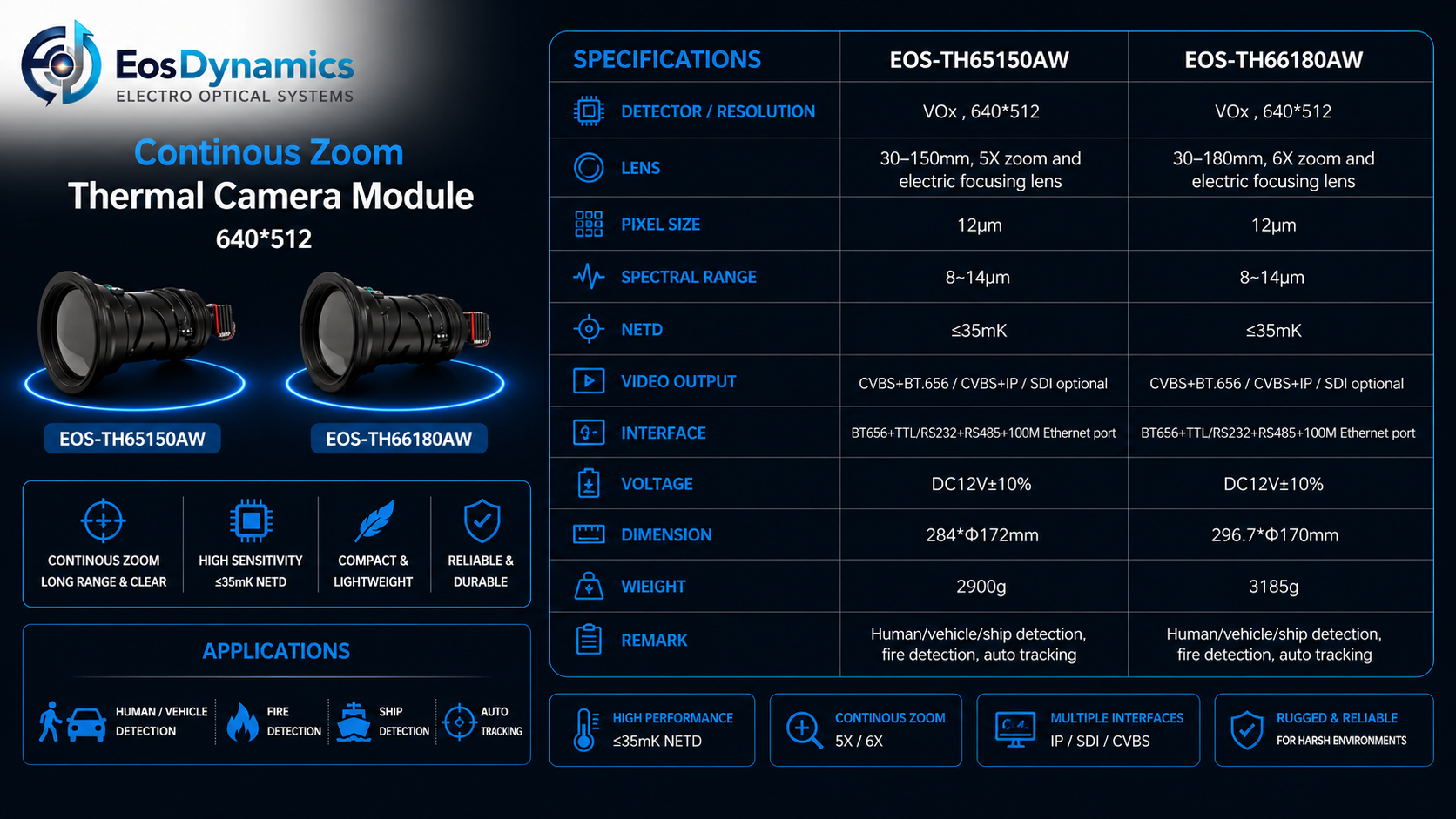

Long-Range Continuous Zoom Thermal Camera Modules
EOS Dynamics long-range continuous zoom thermal camera modules are designed for professional LWIR imaging applications requiring extended detection capability, high thermal sensitivity and stable optical performance. Equipped with 640×512 VOx detector technology, 12 µm pixel pitch and ≤35 mK NETD sensitivity, the EOS-TH series delivers clear thermal imaging performance for demanding surveillance, tracking and security applications.
With motorized continuous zoom optics, electric focusing and multiple video output options, these modules provide flexible integration into electro-optical payloads, border surveillance systems, maritime platforms, fixed observation stations and intelligent auto-tracking systems.
EOS-TH65150AW
The EOS-TH65150AW is a long-range continuous zoom thermal camera module developed for professional surveillance, target observation and electro-optical imaging systems. Built around a 640×512 VOx detector with 12 µm pixel pitch, the module provides reliable LWIR imaging performance across the 8–14 µm spectral range.
Featuring a 30–150 mm motorized continuous zoom lens, EOS-TH65150AW offers smooth 5X optical zoom capability and electric focusing for precise image control. Its extended focal length range allows operators to perform wide-area thermal observation while maintaining the ability to zoom in for detailed target inspection.
With ≤35 mK NETD sensitivity, the module is optimized for detecting low-contrast thermal signatures such as humans, vehicles, ships and fire sources. Multiple video and control interfaces, including CVBS, BT.656, IP, RS232, RS485 and optional SDI output, make it suitable for integration into advanced electro-optical systems and long-range security platforms.
Key Features
- 640×512 VOx thermal detector
- 12 µm pixel pitch
- 8–14 µm LWIR spectral range
- 30–150 mm motorized continuous zoom lens
- 5X smooth optical zoom capability
- Electric focusing for precise image adjustment
- ≤35 mK high thermal sensitivity
- CVBS, BT.656, IP and optional SDI video output
- RS232, RS485 and 100M Ethernet interface support
- Designed for long-range detection and tracking applications
Applications
EOS-TH65150AW is suitable for border surveillance, coastal monitoring, perimeter security, long-range observation systems, vehicle detection, fire detection, maritime surveillance and electro-optical auto-tracking platforms.
EOS-TH66180AW
The EOS-TH66180AW is a high-performance long-range thermal camera module designed for demanding surveillance, detection and target tracking applications. With a 640×512 VOx detector, 12 µm pixel pitch and 8–14 µm LWIR spectral response, it delivers dependable thermal imaging performance in challenging operational environments.
Equipped with a 30–180 mm motorized continuous zoom lens, EOS-TH66180AW provides 6X optical zoom capability for extended-range observation and detailed target monitoring. The electric focusing lens structure enables accurate remote image optimization, making the module highly suitable for stabilized payloads, fixed observation systems and intelligent tracking platforms.
Its ≤35 mK NETD sensitivity supports clear thermal contrast and reliable detection of humans, vehicles, ships and fire signatures. The module offers flexible system integration through CVBS, BT.656, IP, RS232, RS485, 100M Ethernet and optional SDI interfaces, allowing it to be used in professional land, maritime and security-oriented electro-optical systems.
Key Features
- 640×512 VOx thermal detector
- 12 µm pixel pitch
- 8–14 µm LWIR spectral range
- 30–180 mm motorized continuous zoom lens
- 6X smooth optical zoom capability
- Electric focusing lens for accurate image control
- ≤35 mK high thermal sensitivity
- CVBS, BT.656, IP and optional SDI video output
- RS232, RS485 and 100M Ethernet interface support
- Optimized for long-range surveillance and auto-tracking systems
Applications
EOS-TH66180AW is ideal for long-range border surveillance, coastal security, maritime monitoring, strategic perimeter protection, vehicle and ship detection, fire detection and advanced electro-optical tracking applications.
