VIS / NIR Imaging Systems & Block Modules
Day TV Camera Module Family
EOS Dynamics Day TV Camera Modules are designed to deliver clear, stable and high-performance visible imaging for electro-optical payloads, surveillance systems and mission-critical observation platforms.
The family covers a wide range of zoom configurations, from compact 20× camera modules to ultra-long-range 120× optical zoom solutions. Each module combines high-resolution CMOS sensors, powerful optical zoom, digital zoom support, EIS, defog, WDR and low-light imaging capabilities.
With compact mechanical design and flexible video output options such as IP, LVDS, MIPI and HDMI, EOS Day TV modules can be easily integrated into UAVs, gimbals, border surveillance systems, maritime platforms, robotic systems and industrial vision applications.
From lightweight compact modules to ultra-long-range imaging systems, EOS Day TV cameras provide precision imaging, reliable performance and flexible integration for demanding operational environments.

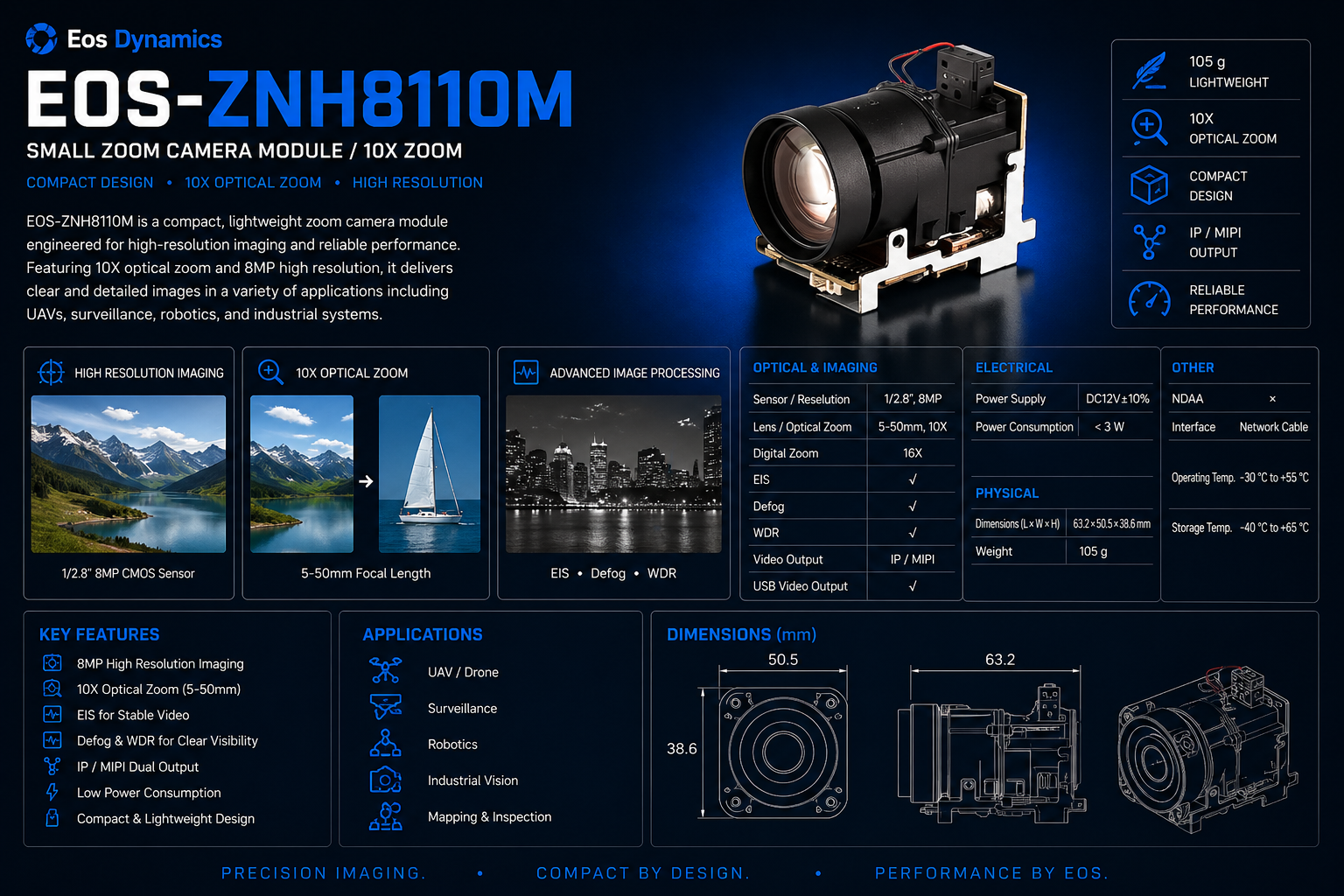

EOS-ZHN8110M
Current
EOS-ZHN8110M is a compact 10× optical zoom camera module designed for high-quality visible imaging in space-limited electro-optical systems.
With a 1/2.8” 8MP CMOS sensor, 5.0–50 mm optical zoom range, 16× digital zoom, Defog and WDR support, it delivers clear and reliable images in surveillance, robotics, UAV, maritime and industrial vision applications.
Its lightweight body, compact mechanical structure and flexible IP / LVDS / MIPI video output options make it suitable for easy integration into multi-sensor payloads and embedded imaging platforms.

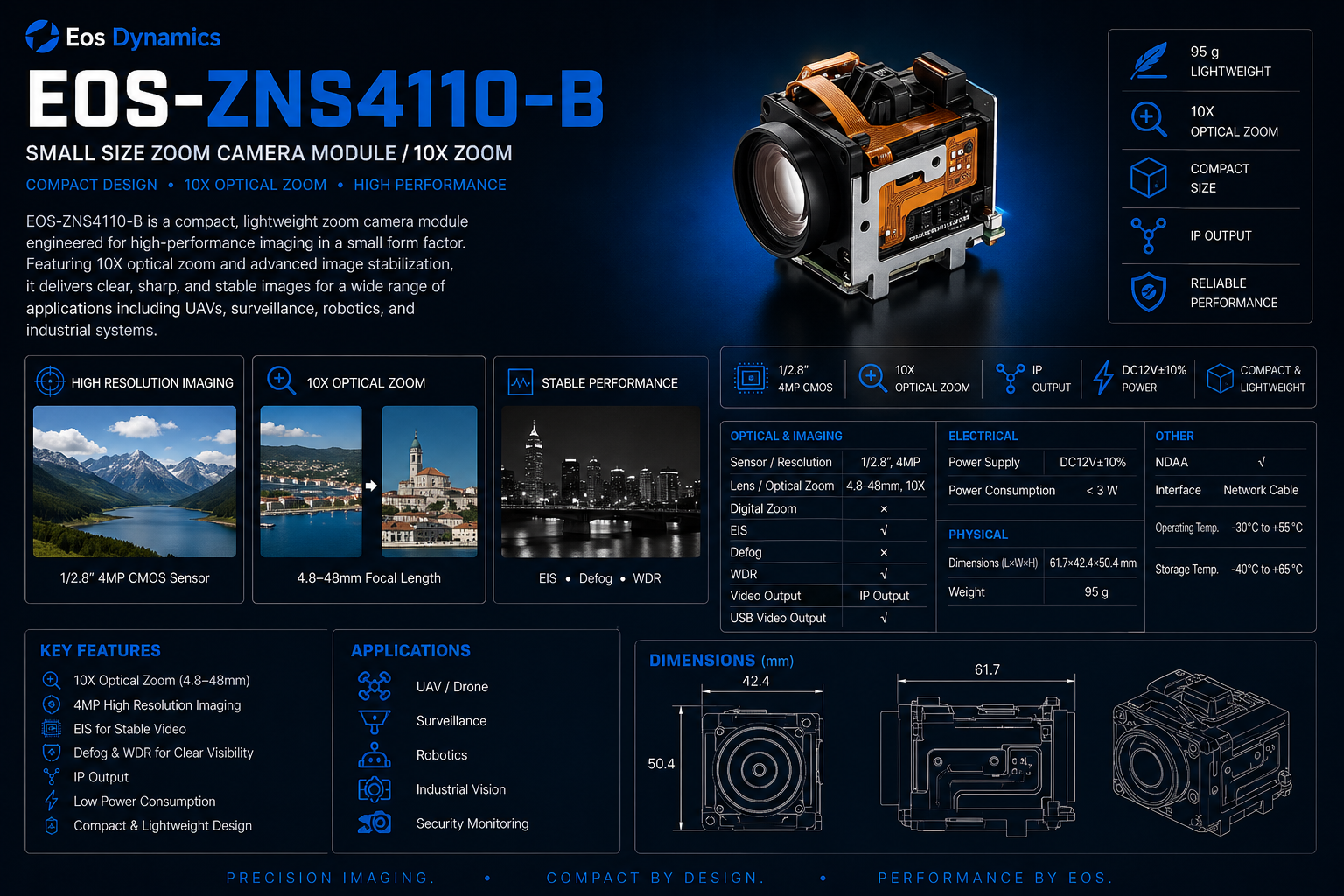

EOS-ZNS4110-B
Current
EOS-ZNS4110-B is a small-size, 4.8-48 mm, 10× optical zoom camera module developed for compact platforms requiring reliable visible imaging performance.
Its 4MP CMOS sensor, low power architecture, EIS support and IP output make it suitable for UAVs, robotic systems, security monitoring and embedded industrial vision applications.

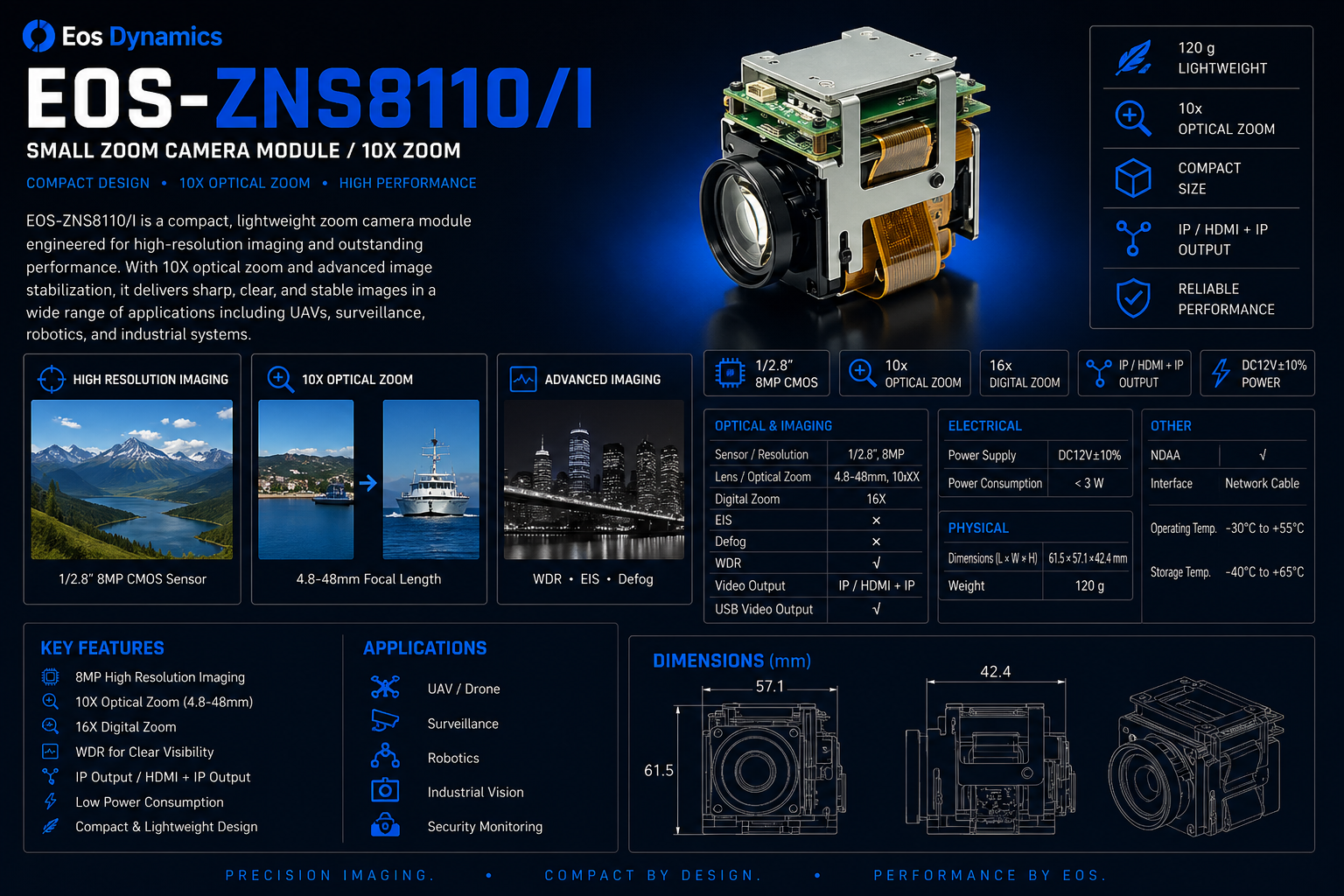

EOS-ZNS8110/I
Current
EOS-ZNS8110/I is a compact 8MP zoom camera module offering 10× optical zoom and high-resolution visible imaging in a small mechanical footprint.
With IP / HDMI + IP output options, 16× digital zoom and WDR support, it provides flexible integration for UAVs, surveillance systems, robotics and industrial imaging platforms.
REF. EOS-ZNS8110/I
Currently Available
EOS-NORMAL-RANGE
Current
EOS-ZNH3110G/MG is a lightweight 10× zoom camera module designed for compact visible imaging systems where size, stability and reliable output are critical.
With 2MP imaging, EIS, Defog, WDR and IP / MIPI output options, it is well suited for UAVs, robotics, industrial vision, aerial observation and compact EO payload integration.
EOS-ZNH2125/D/M is a compact 25× optical zoom camera module developed for high-quality visible imaging in small and medium-size electro-optical systems.
Its 2MP CMOS sensor, 5.1–127.5 mm optical zoom range, 16× digital zoom, EIS, Defog and WDR functions provide stable imaging for UAVs, surveillance, robotics, industrial vision and mapping applications.
EOS-SMALL-RANGE
Current

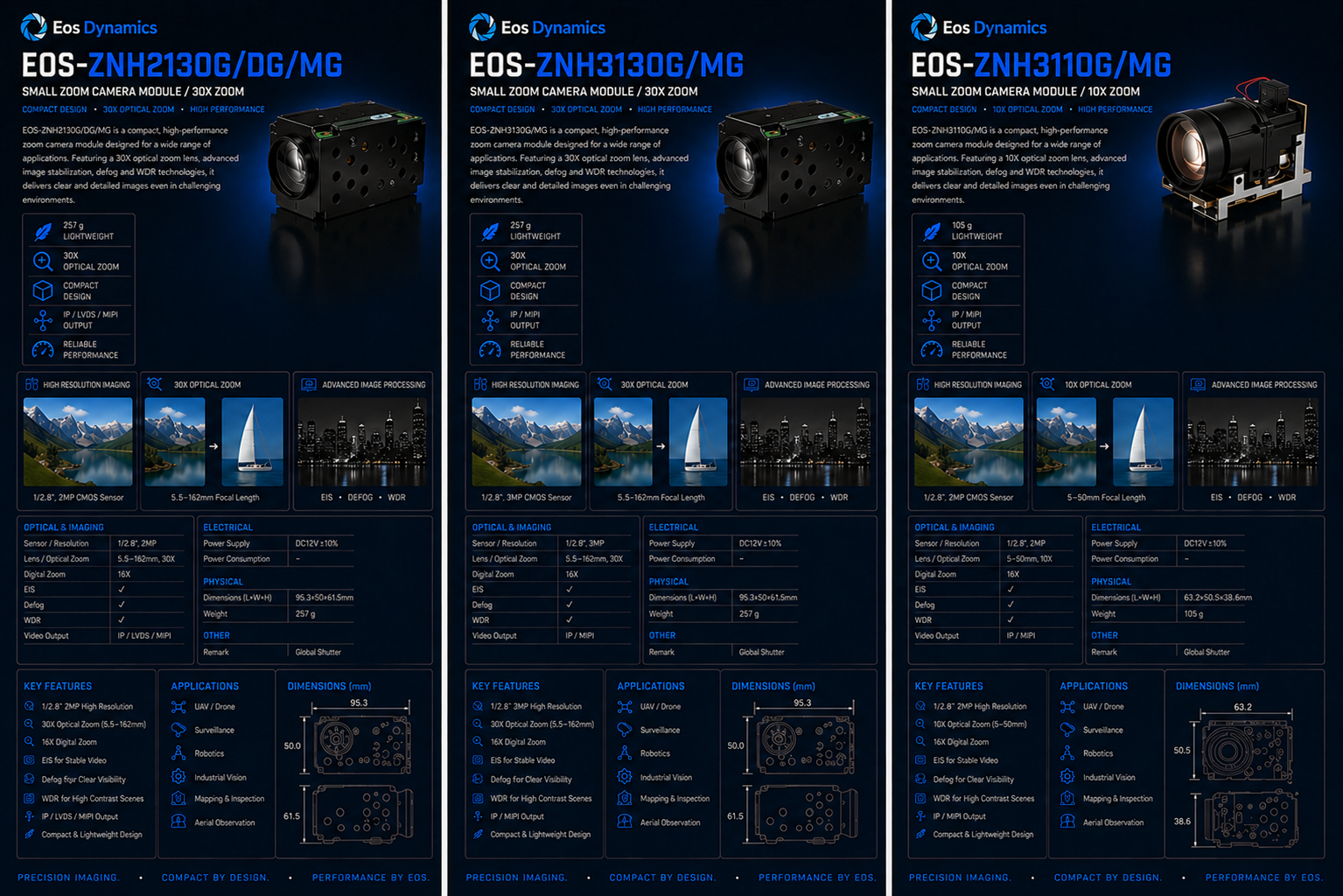

EOS-ZNH2130G/DG/MG
EOS-ZNH2130G/DG/MG is a compact 30× optical zoom camera module designed for clear visible imaging and reliable performance in demanding observation systems.
With 2MP imaging, EIS, Defog, WDR and IP / LVDS / MIPI output options, it is suitable for UAVs, surveillance, robotics, industrial vision and aerial observation applications.
EOS-ZNH3130G/MG is a 30× optical zoom camera module developed for compact platforms requiring stable imaging and enhanced visible observation capability.
Its 3MP sensor, EIS, Defog, WDR and IP / MIPI output support make it suitable for UAVs, robotics, surveillance, industrial vision and aerial monitoring systems.
EOS-ZNH3110G/MG is a lightweight 10× optical zoom camera module designed for compact visible imaging systems where size and reliable output are critical.
With 2MP imaging, EIS, Defog, WDR and IP / MIPI output options, it provides stable performance for UAVs, robotics, industrial vision and aerial observation.

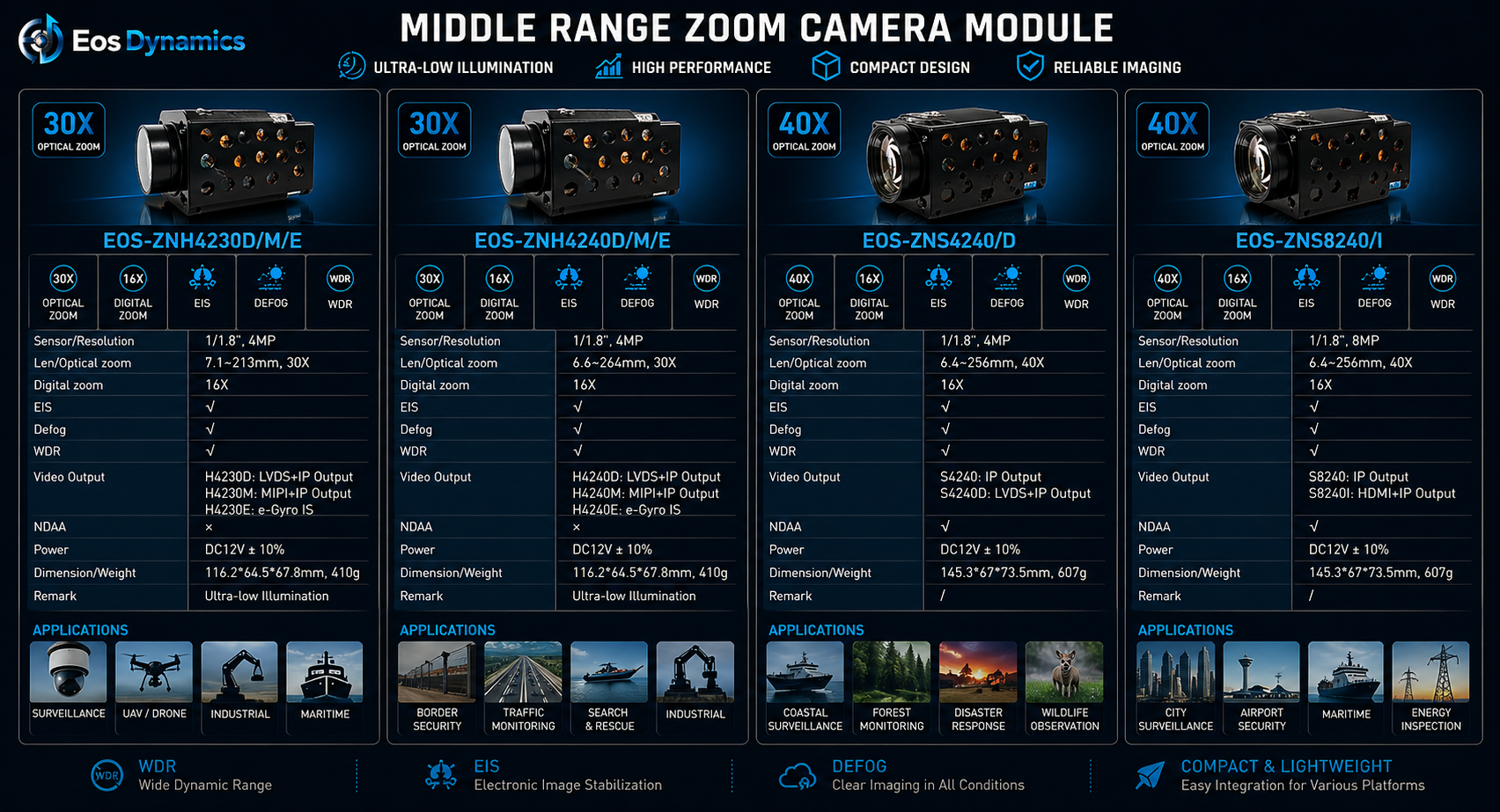

EOS-MIDDLE-RANGE-SERIES
Current
EOS-ZNH4230D/M/E
EOS-ZNH4230D/M/E is a 30× middle-range zoom camera module designed for high-performance visible imaging and reliable operation in demanding platforms.
With 4MP resolution, EIS, Defog, WDR and multiple video output options, it supports border security, UAV/drone systems, industrial vision and maritime surveillance applications.
EOS-ZNH4240D/M/E is a 30× optical zoom camera module developed for middle-range observation systems requiring stable and detailed visible imaging.
Its 4MP sensor, ultra-low illumination capability, EIS, Defog and WDR support make it suitable for border security, traffic monitoring, search and rescue, and industrial monitoring applications.
EOS-ZNS4240/D is a 40× middle-range zoom camera module engineered for extended visible observation and reliable performance in outdoor environments.
With 4MP imaging, EIS, Defog, WDR and IP output, it is well suited for coastal surveillance, forest monitoring, disaster response and wildlife observation systems.
EOS-ZNS8240/I is an 8MP 40× optical zoom camera module designed for high-resolution middle-range imaging and stable long-duration monitoring.
With EIS, Defog, WDR and HDMI + IP output options, it supports city surveillance, airport security, maritime monitoring and energy infrastructure inspection applications.

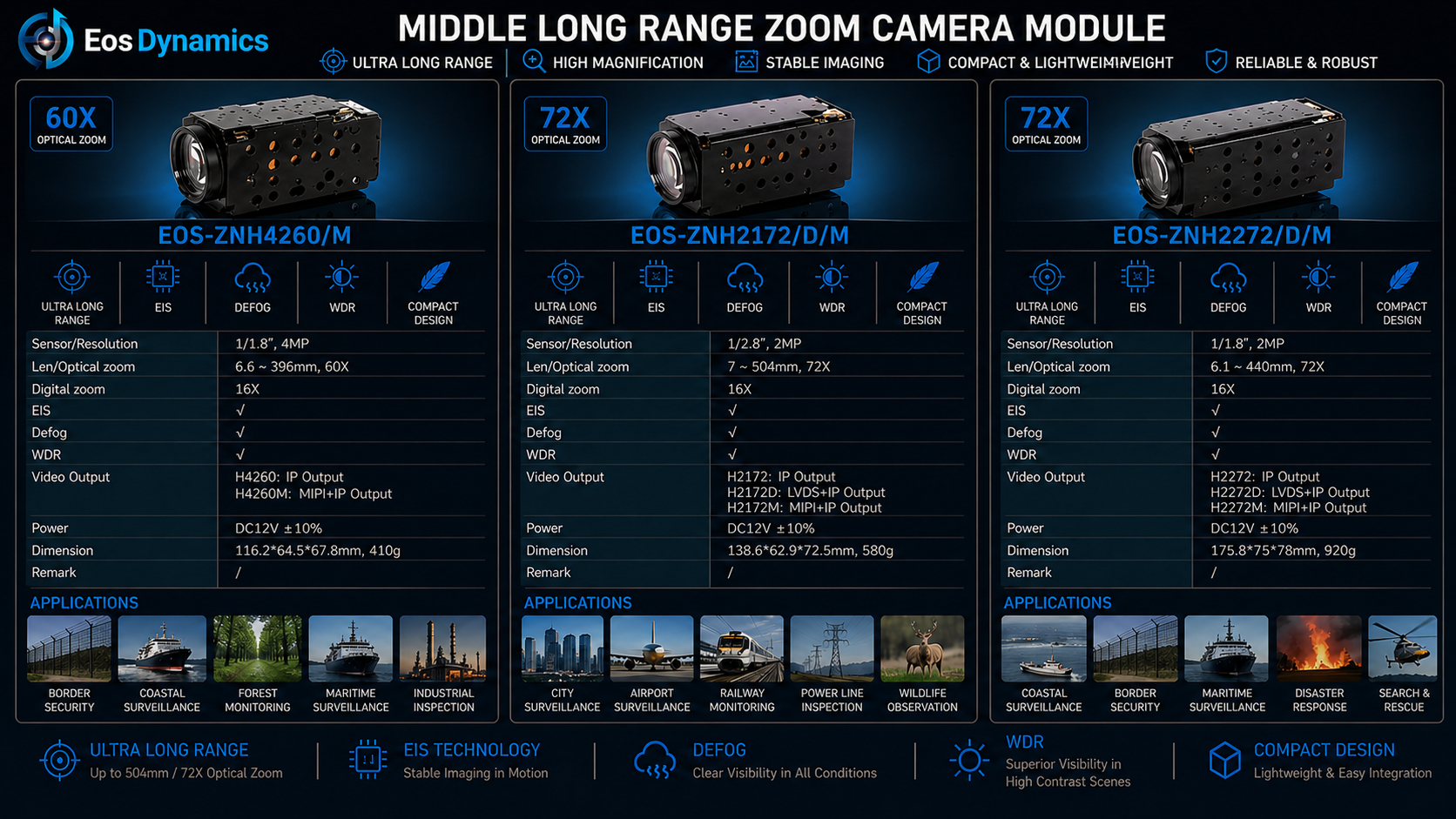

EOS-MID-LONG-RANGE-SERIES
Current
EOS-ZNH4260/M
EOS-ZNH4260/M is a 60× optical zoom camera module designed for middle-long-range visible imaging and extended surveillance applications.
With 4MP resolution, EIS, Defog, WDR and compact integration capability, it delivers reliable performance for border security, coastal surveillance, forest monitoring, maritime observation and industrial inspection systems.
EOS-ZNH2172/D/M is a 72× optical zoom camera module developed for long-distance visible observation in compact electro-optical platforms.
With 2MP imaging, EIS, Defog, WDR and IP / LVDS / MIPI output options, it supports city surveillance, airport monitoring, railway observation, power line inspection and wildlife monitoring applications.
EOS-ZNH2272/D/M is a 72× optical zoom camera module designed for reliable long-distance imaging in demanding outdoor and surveillance environments.
Its long focal range, EIS, Defog, WDR and multiple video output options make it suitable for coastal surveillance, border security, maritime observation, disaster response and search & rescue applications.
EOS-MID-LONG-RANGE-SERIES
Current

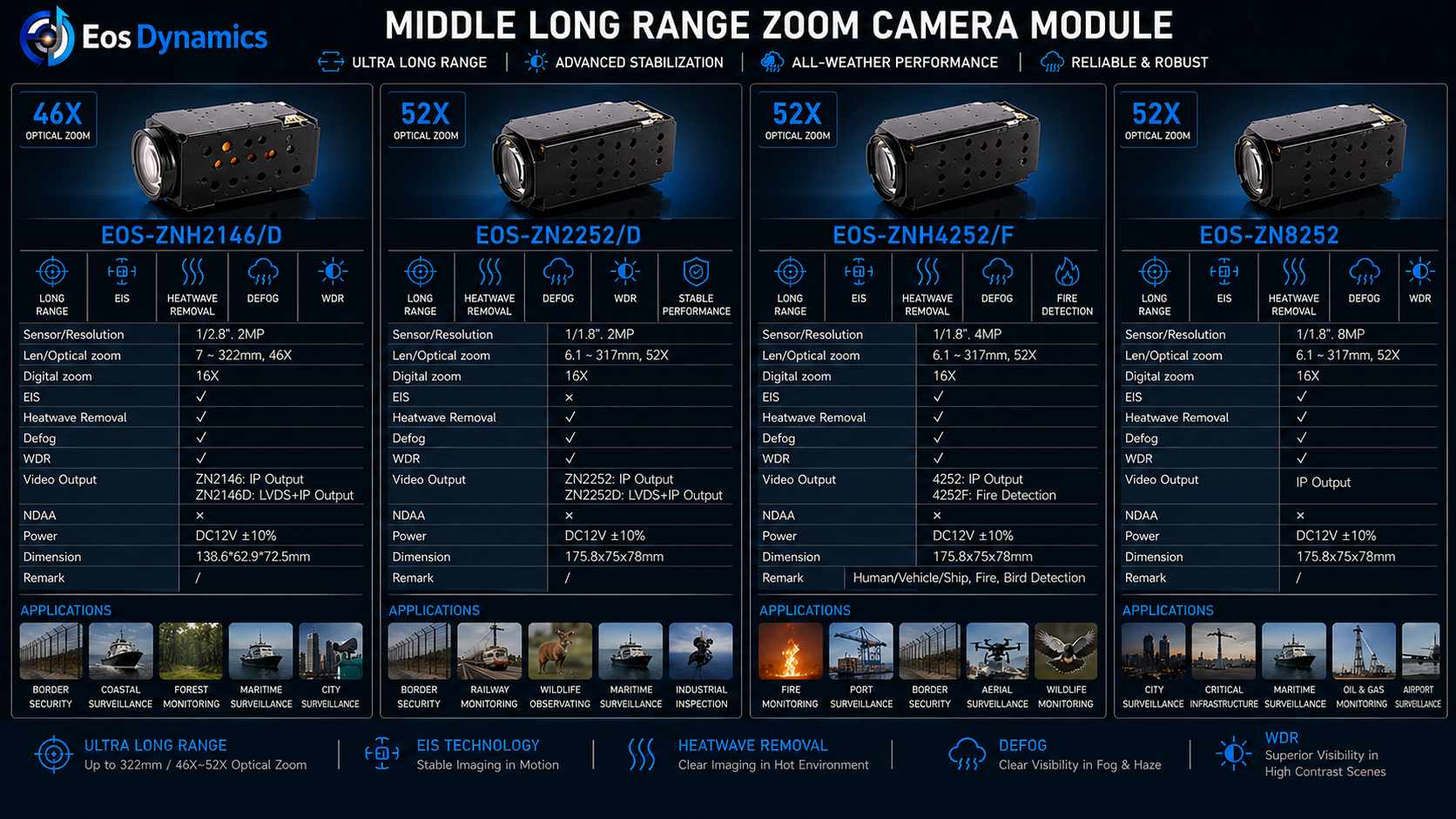

EOS-ZNH2146/D
EOS-ZNH2146/D is a 46× optical zoom camera module designed for middle-long-range visible imaging in demanding outdoor observation systems.
With 2MP imaging, EIS, heatwave removal, Defog and WDR support, it provides stable performance for border security, coastal surveillance, forest monitoring, maritime observation and city surveillance applications.
EOS-ZN2252/D is a 52× optical zoom camera module developed for extended-range visible imaging and reliable all-weather observation performance.
Its 2MP sensor, heatwave removal, Defog, WDR and stable imaging features make it suitable for border security, railway monitoring, wildlife observation, maritime surveillance and industrial inspection applications.
EOS-ZNH4252/F is a 52× optical zoom camera module designed for extended-range visible imaging with advanced environmental visibility support.
With 4MP resolution, EIS, heatwave removal, Defog, WDR and fire detection capability, it supports fire monitoring, port surveillance, border security, aerial surveillance and wildlife monitoring applications.
EOS-ZN8252 is an 8MP 52× optical zoom camera module designed for high-resolution middle-long-range visible imaging and stable outdoor observation.
With EIS, heatwave removal, Defog, WDR and IP output, it is suitable for city surveillance, critical infrastructure monitoring, maritime surveillance, oil and gas monitoring, and airport security applications.

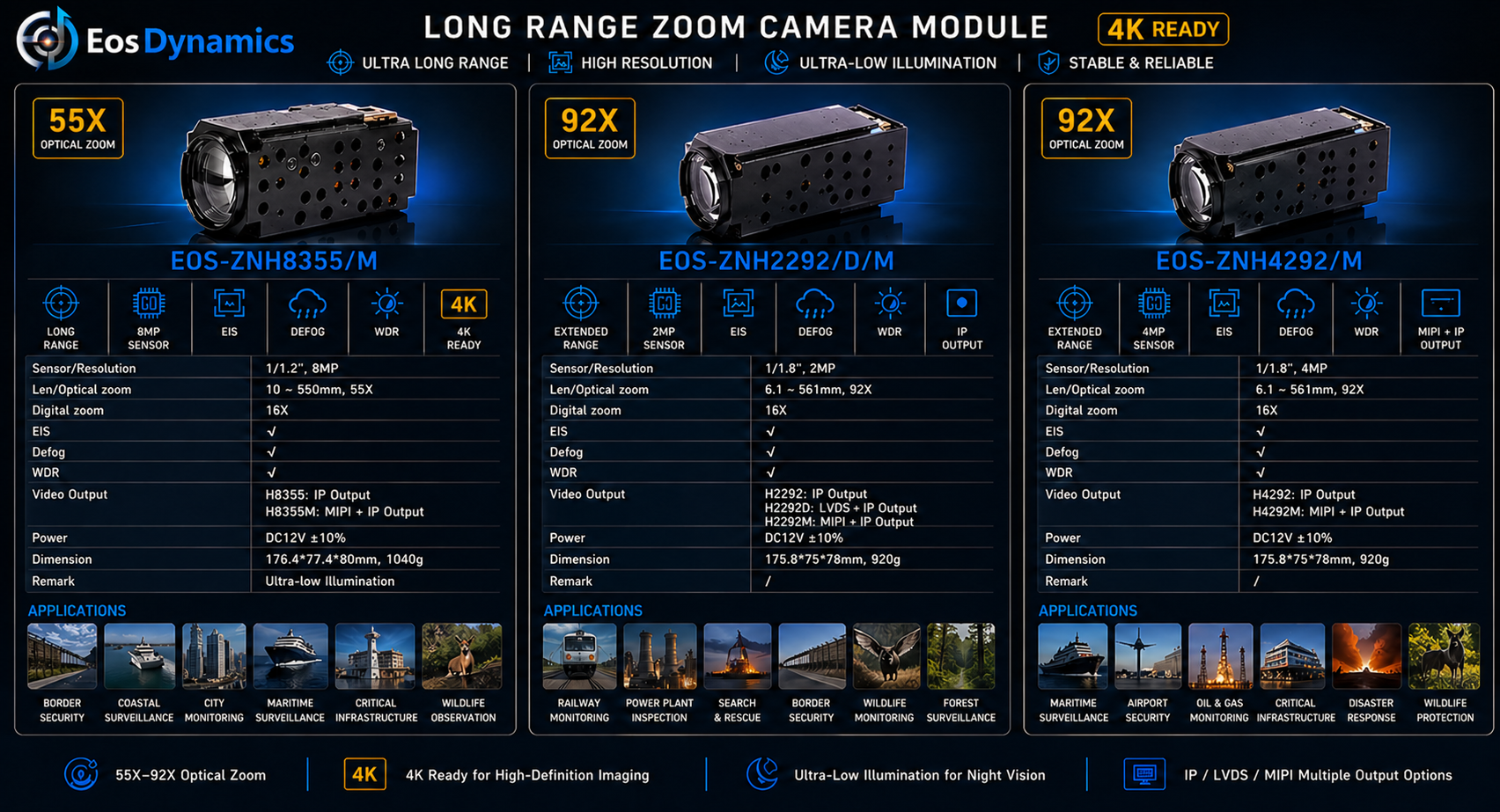

EOS-LONG-RANGE-SERIES
Current
EOS-ZNH8355/M
EOS-ZNH8355/M is a 55× long-range zoom camera module designed for high-resolution visible imaging and extended-distance observation.
With an 8MP sensor, EIS, Defog, WDR, ultra-low illumination capability and 4K-ready imaging support, it is suitable for border security, maritime surveillance, city monitoring and critical infrastructure applications.
EOS-ZNH2292/D/M is a 92× long-range zoom camera module engineered for extended visual reach and stable long-distance observation.
With 2MP imaging, EIS, Defog, WDR and IP / LVDS / MIPI output options, it supports railway monitoring, power plant inspection, search and rescue, border security, wildlife monitoring and forest surveillance applications.
EOS-ZNH4292/M is a 92× long-range zoom camera module designed for high-resolution visible imaging in demanding surveillance and monitoring systems.
With 4MP resolution, EIS, Defog, WDR and MIPI + IP output options, it is suitable for maritime surveillance, airport security, oil and gas monitoring, critical infrastructure and disaster response applications.

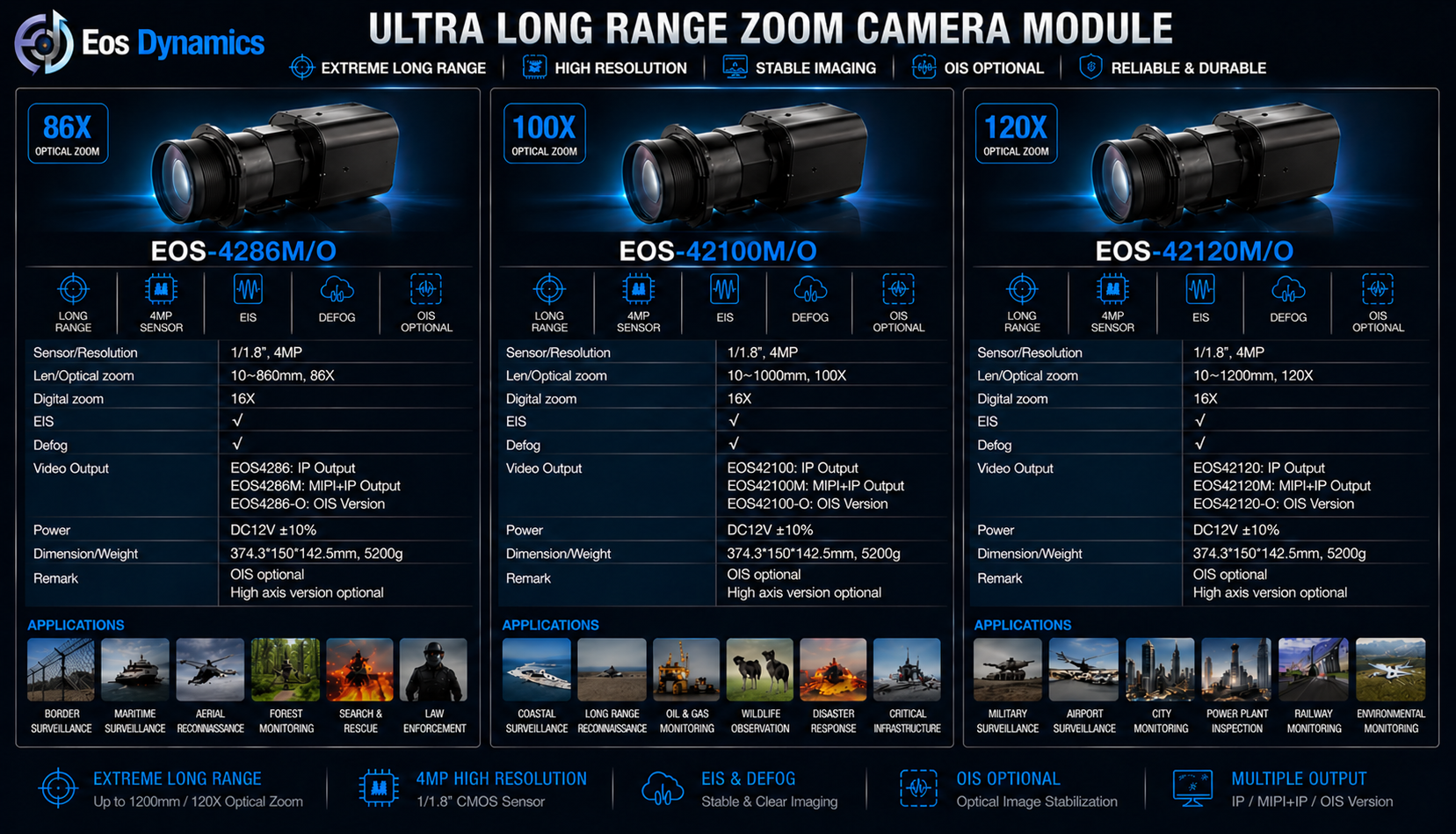

EOS-ULTRA-LONG-RANGE-SERIES
Current
EOS-4286M/O
EOS-4286M/O is an 86× ultra-long-range zoom camera module designed for extreme-distance visible imaging and high-stability observation systems.
With 4MP resolution, EIS, Defog and optional OIS support, it provides reliable performance for border surveillance, maritime observation, aerial reconnaissance, forest monitoring, search and rescue, and law enforcement applications.
EOS-42100M/O is a 100× ultra-long-range zoom camera module engineered for high-magnification visible imaging over very long observation distances.
Its 4MP sensor, EIS, Defog and optional OIS configuration deliver stable imaging performance for coastal surveillance, long-range reconnaissance, oil and gas monitoring, disaster response and critical infrastructure applications.
EOS-42120M/O is a 120× ultra-long-range zoom camera module developed for maximum optical reach and reliable long-distance visible surveillance.
With 4MP imaging, EIS, Defog, optional OIS and multiple output configurations, it is suitable for military surveillance, airport monitoring, city observation, power plant inspection, railway monitoring and environmental monitoring systems.
