IR Laser Illuminator Modules

EOS-LS Series IR Laser Illuminator Modules are designed to deliver stable, long-range infrared illumination for electro-optical imaging systems, surveillance platforms, night vision applications and custom optical integrations.

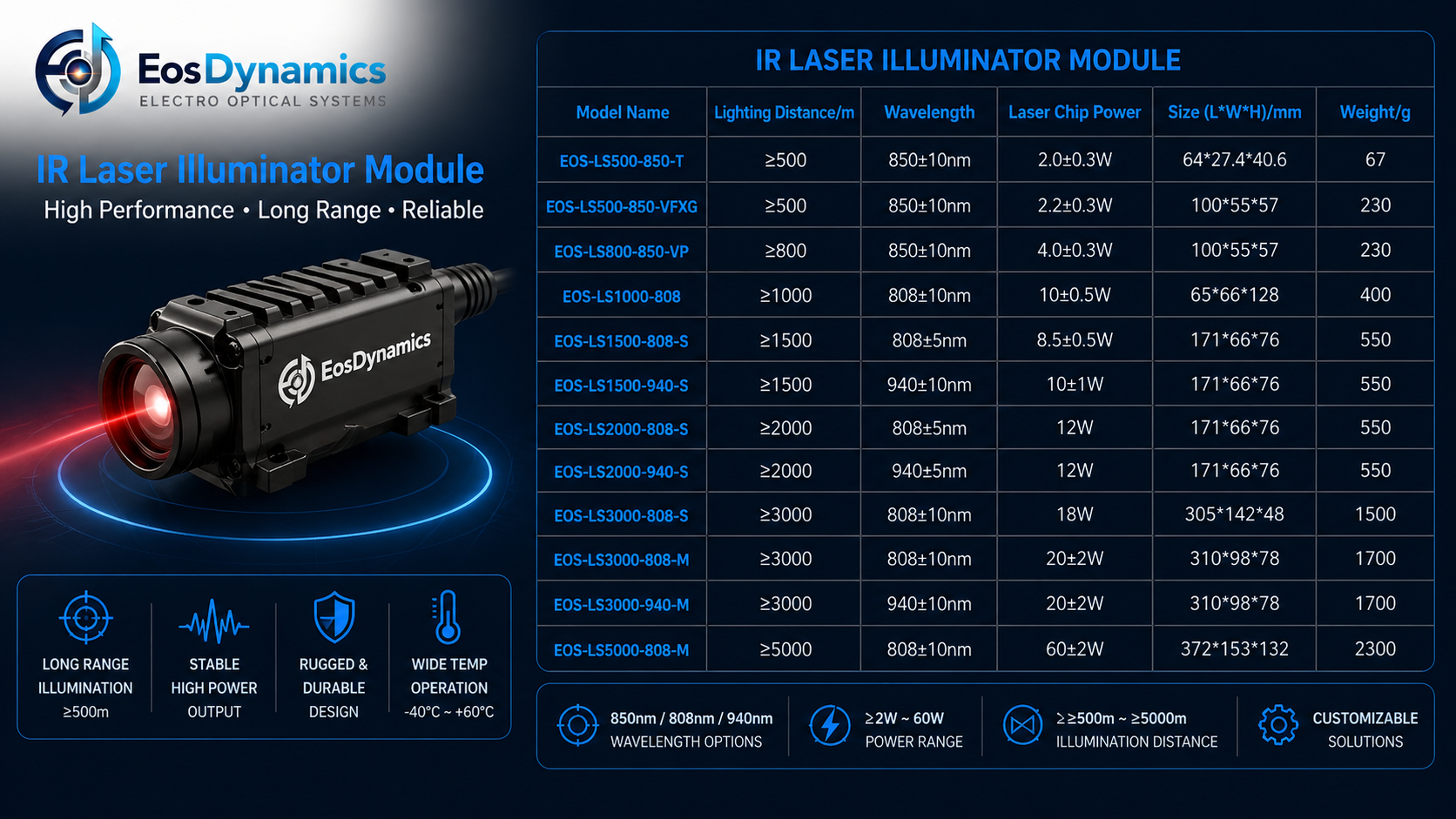

The series offers multiple wavelength options including 808 nm, 850 nm and 940 nm, with illumination distances ranging from 500 m up to 5000 m. Different power, size and weight configurations allow flexible integration into compact, mobile or fixed optical systems.

With rugged mechanical design, reliable high-power laser output and wide temperature operation from -40°C to +60°C, EOS-LS modules provide a dependable illumination solution for demanding field conditions.

Key Features

• Long-range IR illumination from ≥500 m to ≥5000 m
• 808 nm, 850 nm and 940 nm wavelength options
• Laser chip power options from 2 W to 60 W
• Stable high-power infrared output
• Compact and rugged mechanical design
• Wide temperature operation: -40°C to +60°C
• Suitable for fixed, mobile and custom EO system integration

Application Areas

• Long-range surveillance systems
• EO/IR payloads and imaging platforms
• Night vision and low-light imaging systems
• Border and perimeter security systems
• Vehicle-mounted optical systems
• Industrial monitoring and machine vision
• Custom electro-optical system integration
