EOS - MWIR - Family
EOS - MWIR - FAM
Cooled Imaging Family

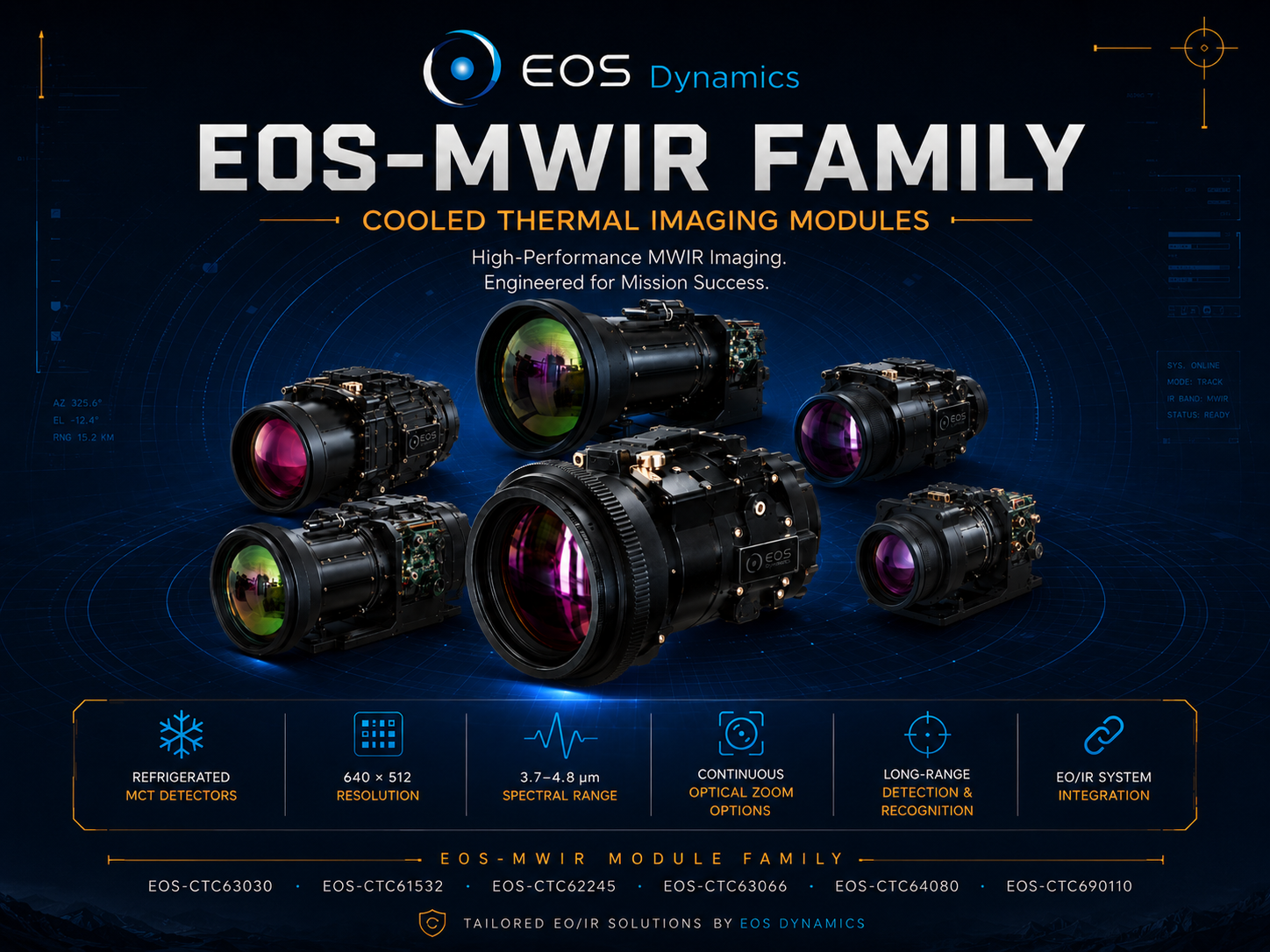

EOS Dynamics 3.7–4.8 μm spectral range cooled thermal imaging modules are designed for long-range surveillance , target detection, recognition and EO/IR system integration. The product family combines refrigerated MCT detector technology, continuous optical zoom lenses, automatic focusing capability and rugged mechanical construction for demanding defense, security and industrial observation applications.

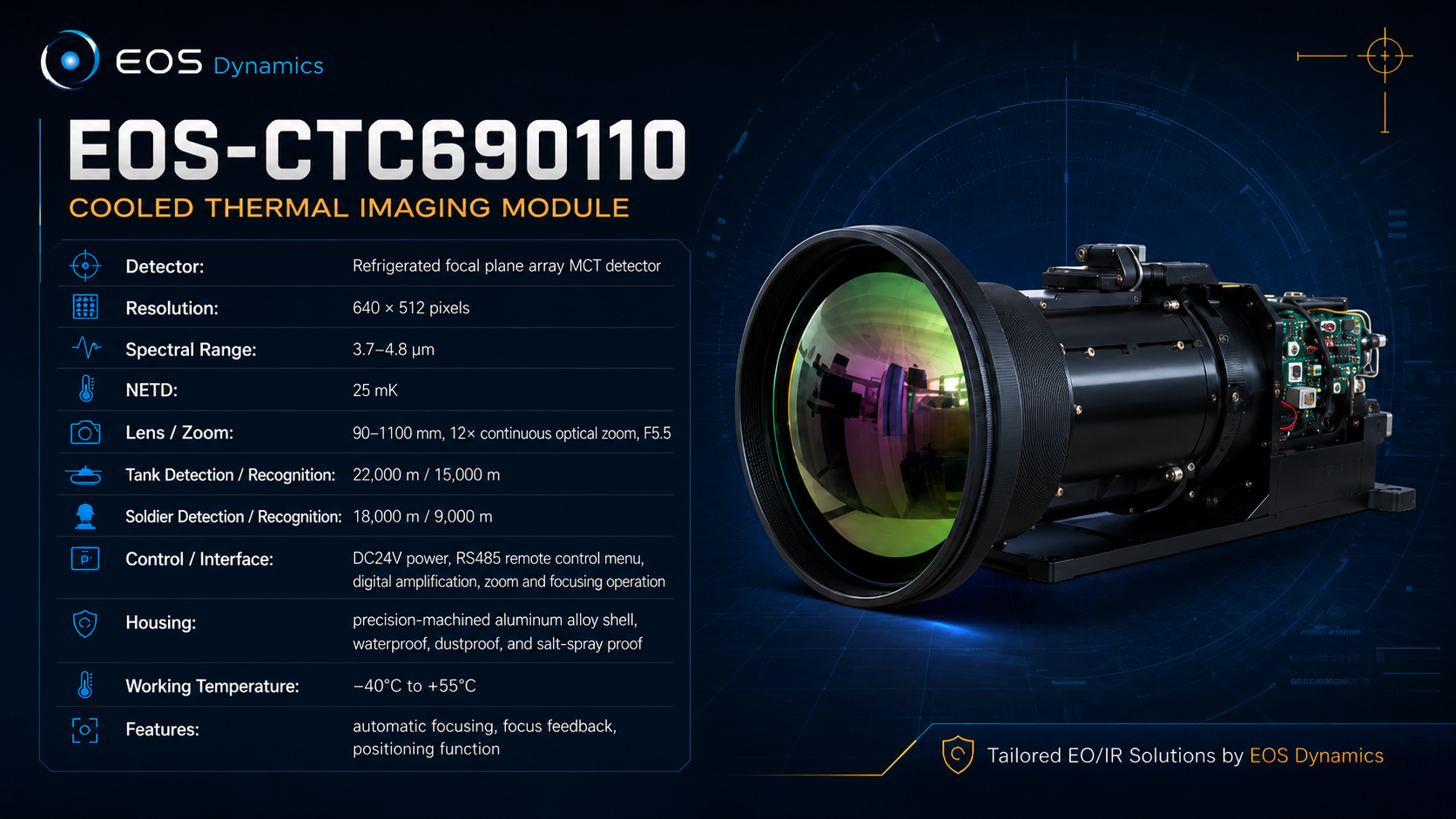

EOS-CTC690110
Cooled MWIR Imaging Module
EOS-CTC690110 is the long-range member of the cooled thermal imaging module family, developed for demanding observation and surveillance missions. Featuring a 90–1100 mm continuous optical zoom lens, ruggedized housing and extended recognition capability, it is suitable for high-end EO/IR platforms and mission-critical long-distance imaging systems.
- 640 × 512 refrigerated MCT detector
- 90–1100 mm, 12× continuous optical zoom
- NETD 25 mK thermal sensitivity
- Tank detection / recognition: 22,000 m / 15,000 m
- Soldier detection / recognition: 18,000 m / 9,000 m

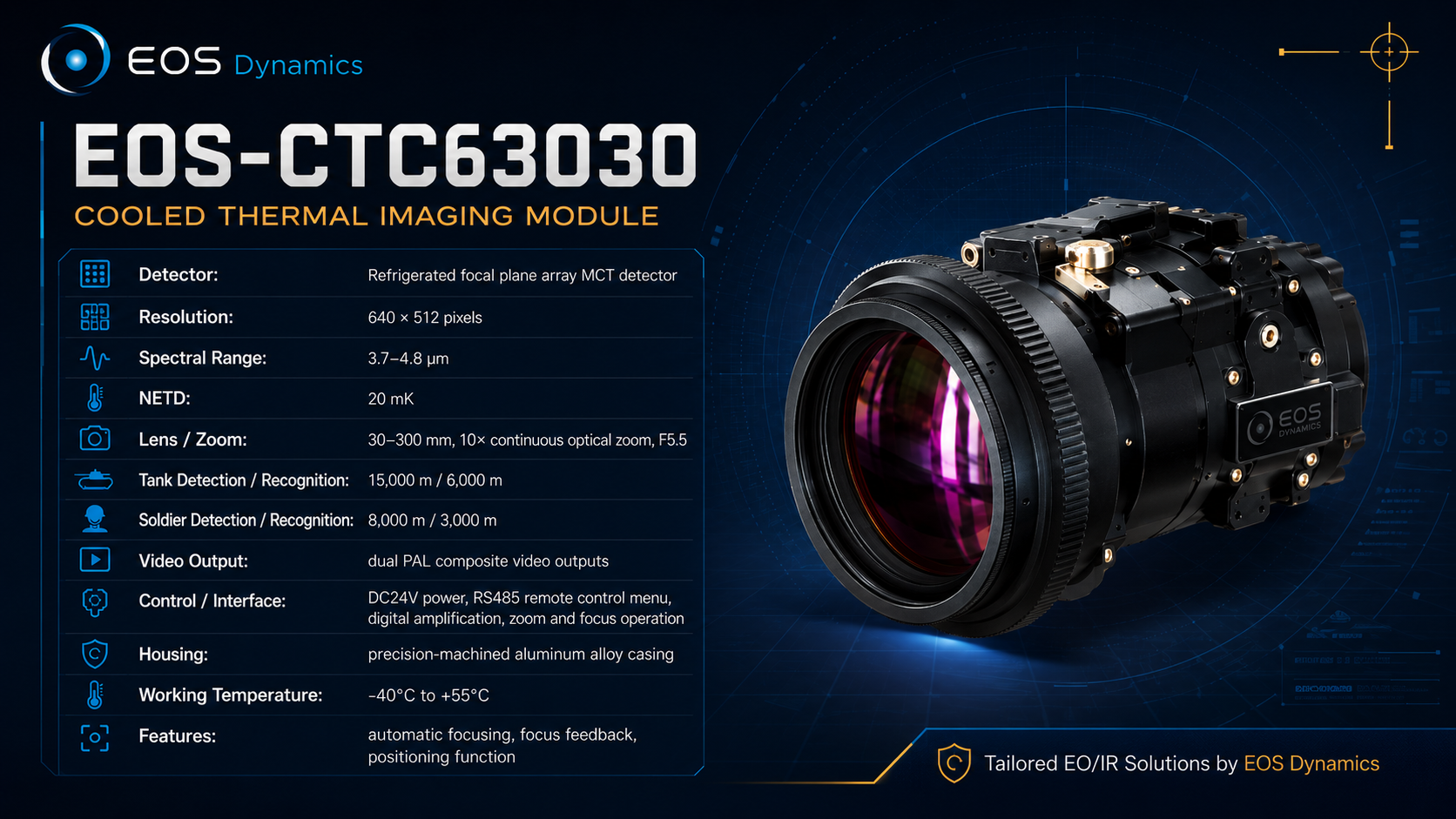

EOS-CTC63030
Cooled MWIR Imaging Module
EOS-CTC63030 is a compact cooled thermal imaging module designed for medium-to-long range observation, target detection and electro-optical system integration. With its refrigerated MCT detector, 640 × 512 resolution and 30–300 mm continuous optical zoom lens, the module provides reliable thermal imaging performance in demanding operational environments.
- 640 × 512 refrigerated MCT detector
- 3.7–4.8 μm spectral range
- 30–300 mm, 10× continuous optical zoom
- Tank detection / recognition: 15,000 m / 6,000 m
- Soldier detection / recognition: 8,000 m / 3,000 m

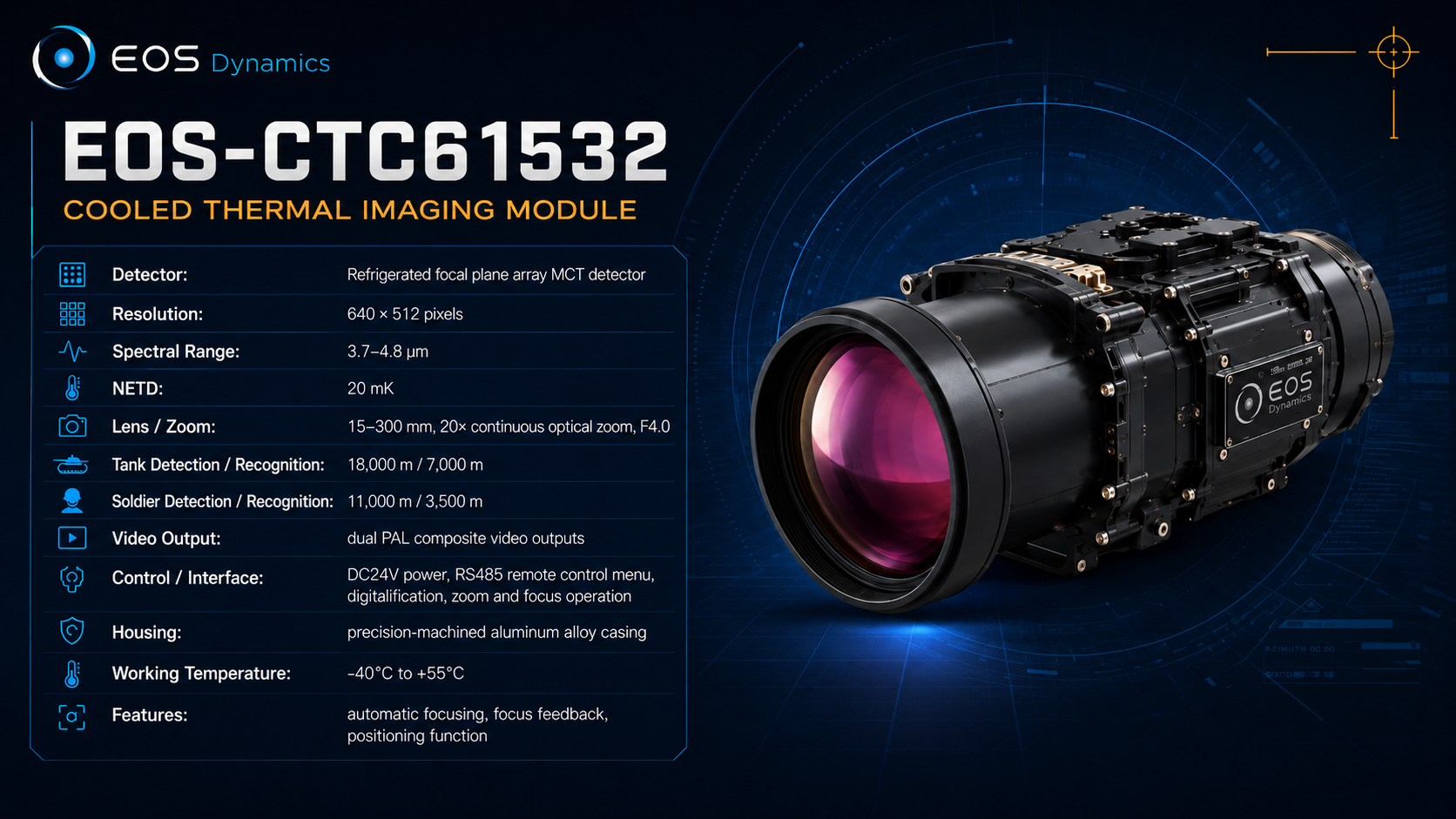

EOS-CTC61532
Cooled MWIR Imaging Module
EOS-CTC61532 offers enhanced optical zoom capability for long-range cooled thermal imaging applications. Its 15–300 mm, 20× continuous optical zoom lens enables flexible field-of-view control, making it suitable for surveillance, reconnaissance, border security and EO/IR payload integration.
- 640 × 512 refrigerated MCT detector
- NETD 20 mK thermal sensitivity
- 15–300 mm, 20× continuous optical zoom
- Tank detection / recognition: 18,000 m / 7,000 m
- Soldier detection / recognition: 11,000 m / 3,500 m

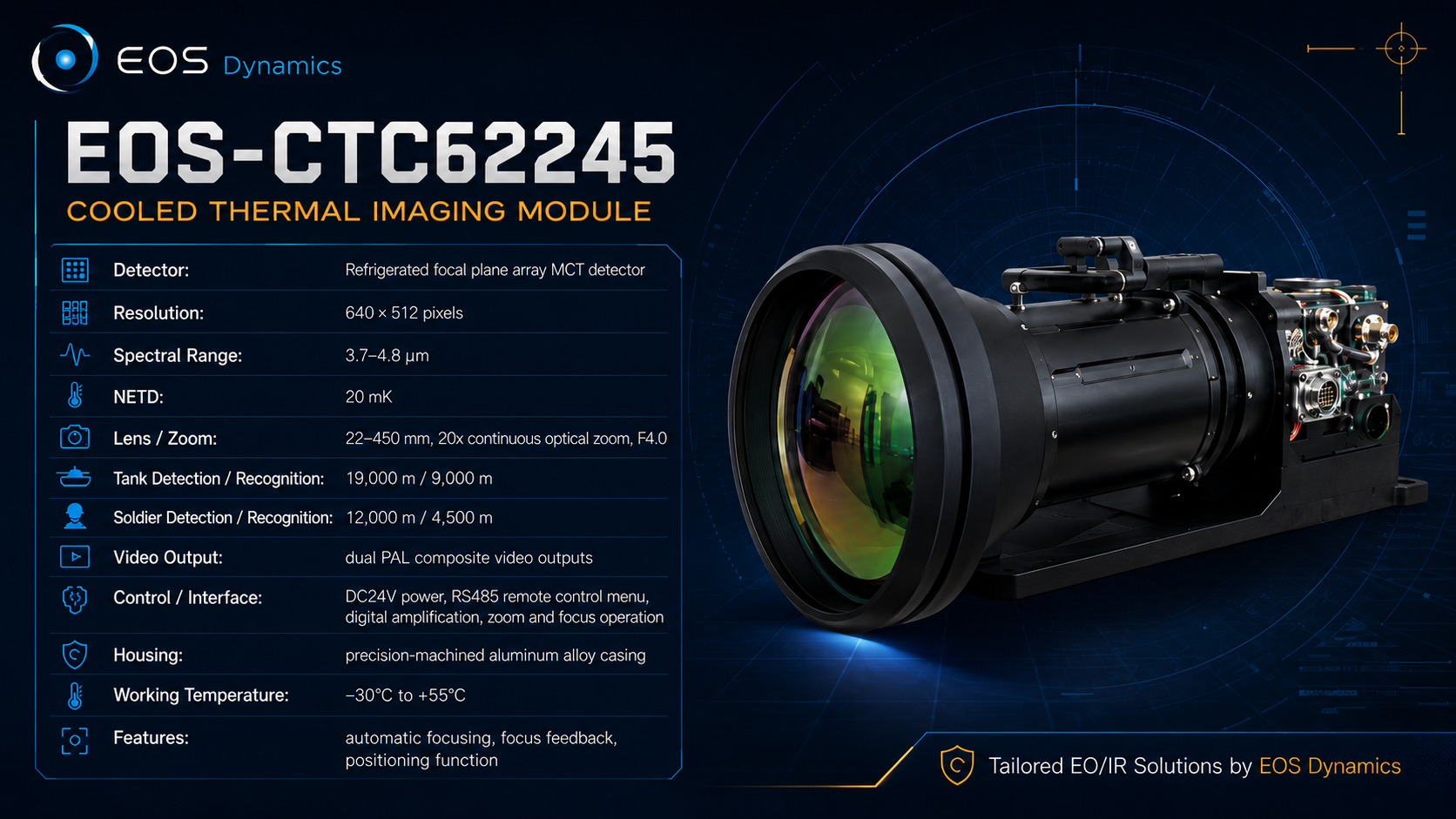

EOS-CTC62245
Cooled MWIR Imaging Module
EOS-CTC62245 is engineered for extended-range thermal observation with a 22–450 mm continuous optical zoom configuration. Its cooled MCT detector and high-performance optical system support precise target detection, recognition and tracking across wide-area surveillance scenarios.
- 640 × 512 refrigerated MCT detector
- 22–450 mm, 20× continuous optical zoom
- F4.0 optical configuration
- Tank detection / recognition: 19,000 m / 9,000 m
- Soldier detection / recognition: 12,000 m / 4,500 m

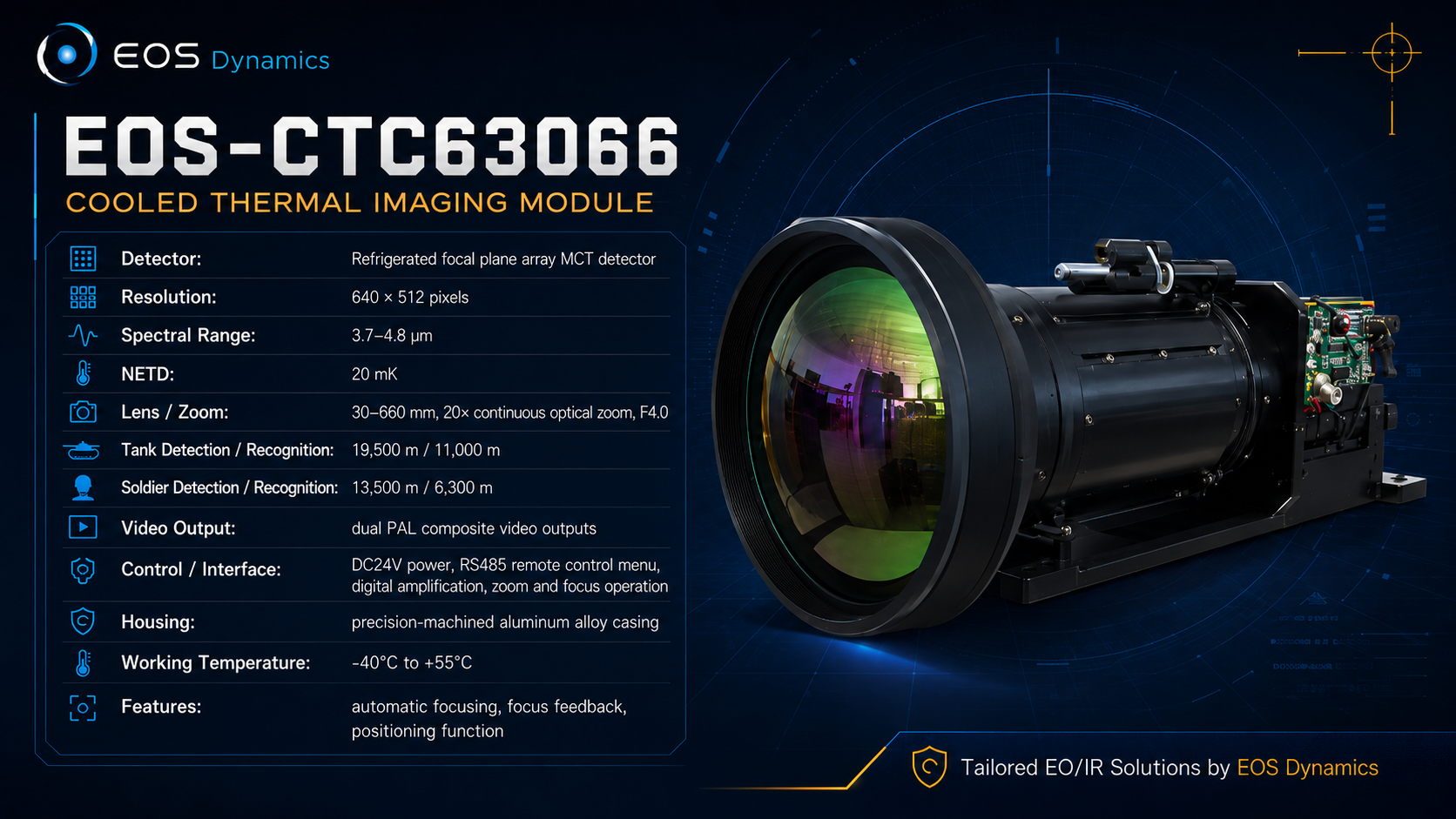

EOS-CTC63066
Cooled MWIR Imaging Module
EOS-CTC63066 is a high-performance cooled thermal imaging module developed for long-range EO/IR systems. With its 30–660 mm, 20× continuous optical zoom lens, precision-machined aluminum housing and automatic focusing capability, it is suitable for demanding surveillance, targeting and platform integration tasks.
- 640 × 512 refrigerated MCT detector
- 30–660 mm, 20× continuous optical zoom
- NETD 20 mK thermal sensitivity
- Tank detection / recognition: 19,500 m / 11,000 m
- Soldier detection / recognition: 13,500 m / 6,300 m

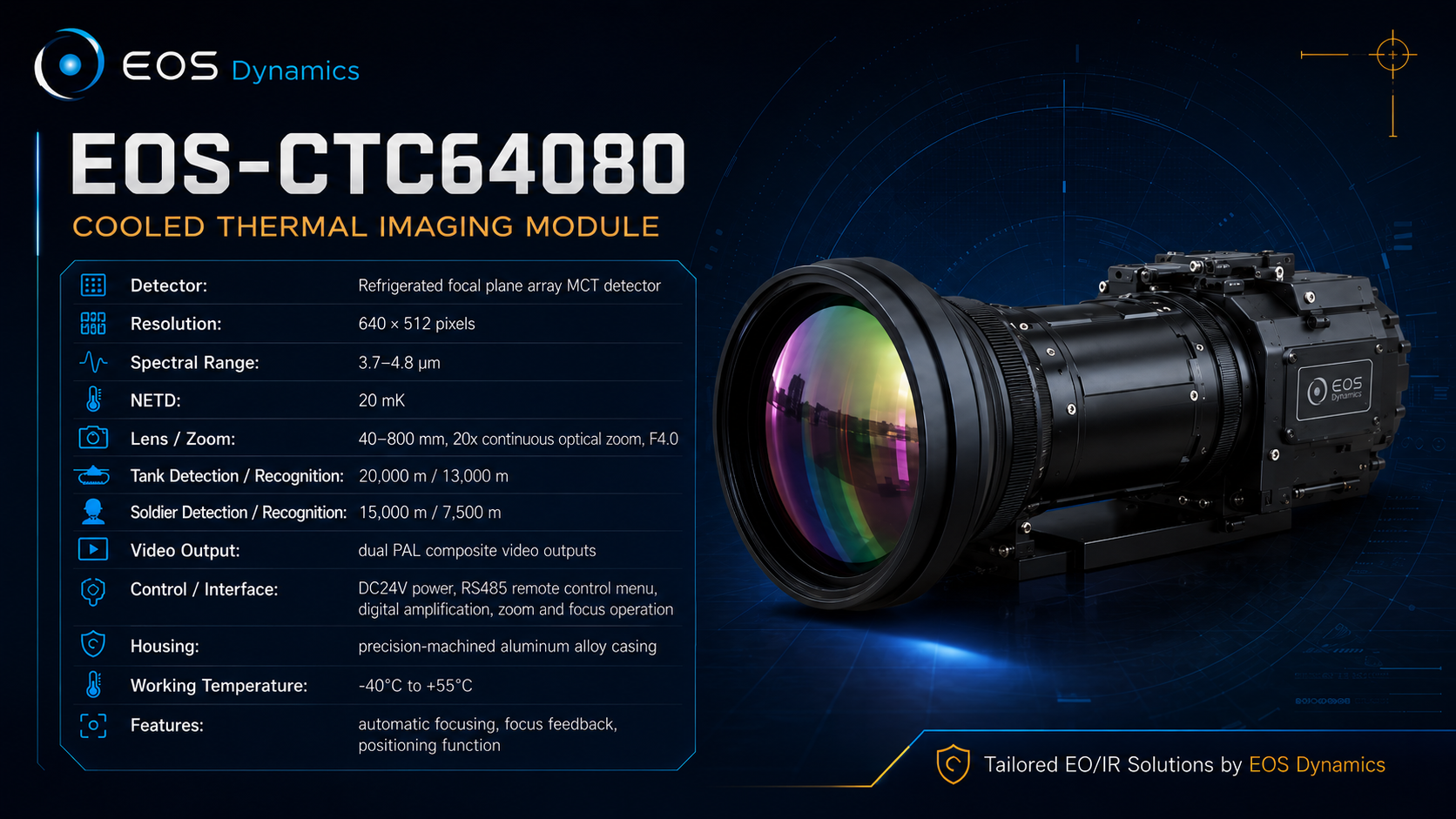

EOS-CTC64080
Cooled MWIR Imaging Module
EOS-CTC64080 is designed for advanced long-range thermal imaging applications requiring high optical reach and stable image performance. Its 40–800 mm continuous optical zoom lens provides extended detection and recognition capability for fixed, mobile and integrated EO/IR surveillance systems.
- 640 × 512 refrigerated MCT detector
- 40–800 mm, 20× continuous optical zoom
- 3.7–4.8 μm spectral range
- Tank detection / recognition: 20,000 m / 13,000 m
- Soldier detection / recognition: 15,000 m / 7,500 m
